PC-LPM-16

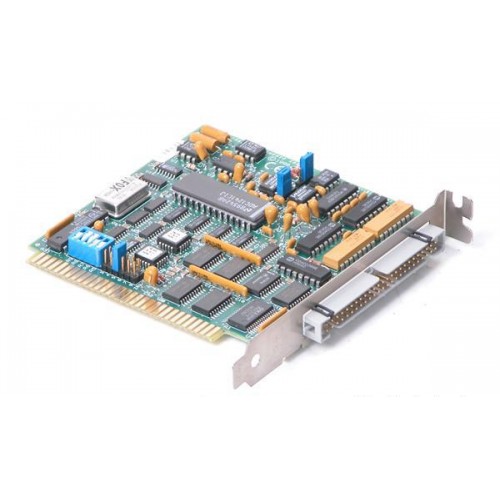

1 image: Click to enlarge
National Instruments · PC-based data acquisition

PC-LPM-16

The National Instruments PC-LPM-16 is a PC-based multifunction data acquisition board with 16 single-ended analog inputs, 12-bit conversion, and a maximum sampling rate of 50 kS/s. It belongs to a legacy hardware generation requiring NI-DAQ 6.9.x or earlier.

ManufacturerNational Instruments
ModelPC-LPM-16
Product TypeMultifunction data acquisition board
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PC-LPM-16

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended channels
ADC resolution12-bit
Maximum sampling rate50 kS/s
Input ranges±5 V, ±2.5 V, 0–10 V, and 0–5 V
Signal connector50-pin
Driver generationNI-DAQ 6.9.x or earlier; not supported by NI-DAQ 7.x
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PC-LPM-16 combines multichannel analog acquisition with digital I/O and counter/timing resources. NI's archived hardware tables specify 16 single-ended inputs with unity gain and four selectable voltage ranges.

Analog acquisition supports an individual channel or a sequential multichannel scan from channel N down to channel 0. The documented maximum sampling rate is 50 kS/s, with interrupt-based transfer and software triggering.

NI documentation lists PC-LPM-16 and PC-LPM-16PnP separately. This catalog record retains the PC-LPM-16 identity; the PnP model should not be treated as an identical configuration without checking the installed hardware and software environment.

  • 16 single-ended analog input channels with 12-bit conversion.
  • Bipolar and unipolar input ranges: ±5 V, ±2.5 V, 0–10 V, and 0–5 V.
  • Single-channel acquisition or sequential multichannel scanning from channel N through channel 0.
  • 16-sample analog input FIFO and interrupt-based analog data transfer.
  • Digital I/O and 82C53 counter/timer hardware documented in NI's archived hardware capability tables.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 single-ended
Analog input resolution12 bit
Maximum sampling rate50 kS/s
Analog input ranges±5, ±2.5, 0 to 10, 0 to 5 V
Analog input gain1
Analog input FIFO depth16 samples
Analog input triggeringSoftware trigger only
Analog input transfer methodInterrupts
Counter/timer hardware82C53
Signal connector pin count50 pins
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PC-based data acquisition

Host system environment

PC-LPM-16

Multifunction DAQ board

Legacy software

NI specifies NI-DAQ 6.9.x or earlier for PC-LPM-16/PNP hardware.

Confirm the exact board variant, host expansion interface, operating system, and legacy driver version before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Archived LabVIEW Function and VI Reference Manual — DAQ Hardware CapabilitiesReference Manual · download.ni.com
Open →
Archived LabVIEW Data Acquisition Basics ManualSoftware And Hardware Reference · download.ni.com
Open →
NI-DAQ 7.5 Readme — Devices No Longer SupportedDriver Support Reference · download.ni.com
Open →
NI BNC-2090 Signal Grounding and Noise ConfigurationTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PC-LPM-16 have 16-bit analog input resolution?

No. NI specifies 16 single-ended analog input channels with 12-bit resolution. The model's “16” should not be interpreted as ADC resolution.

Can the PC-LPM-16 scan an arbitrary list of analog channels?

NI documents any single channel, or a sequential multichannel scan from channel N down through channel 0, including the intervening channels.

Which driver generation is required?

NI lists PC-LPM-16/PNP among devices requiring NI-DAQ 6.9.x or earlier. These devices are not supported by NI-DAQmx 7.x or Traditional NI-DAQ 7.x.

Is this record for the PC-LPM-16PnP?

No. This record is for PC-LPM-16. NI's historical compatibility tables list PC-LPM-16 and PC-LPM-16PnP separately.
