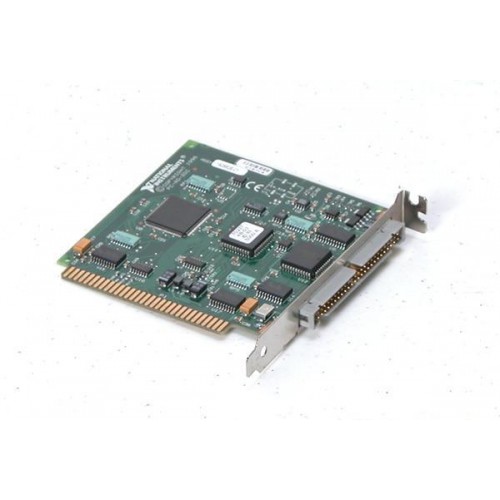

The National Instruments PC-AO-2DC is a two-channel analog output board for legacy PC/XT-bus systems. NI documents software-selectable voltage and current-sink output ranges.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PC-AO-2DC provides two analog output channels with selectable voltage or current-sink operation. NI's archived hardware table lists 0 to 10 V, ±5 V, and 0 to 20 mA sink ranges.
Software selection is an important integration constraint. NI lists this board among devices unsupported by NI-DAQ 7.1, including both NI-DAQmx and Traditional NI-DAQ, and directs users to NI-DAQ 6.9.x or earlier.
Verified product specifications.
| Analog output channels | 2 channels |
|---|---|
| Analog output channel numbering | 0, 1 |
| Voltage output ranges | 0 to 10; ±5 V |
| Current output range | 0 to 20, sink mA |
| Range selection | Software-selectable |
| Bus classification | PC/XT |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host platform
Analog output board
NI specifies NI-DAQ 6.9.x or earlier for programming this device.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It provides two channels, numbered 0 and 1.
NI lists software-selectable 0 to 10 V, ±5 V, and 0 to 20 mA current-sink ranges.
NI's NI-DAQ 7.1 readme lists the PC-AO-2DC as unsupported by both NI-DAQmx and Traditional NI-DAQ 7.1. It directs users to NI-DAQ 6.9.x or earlier.
