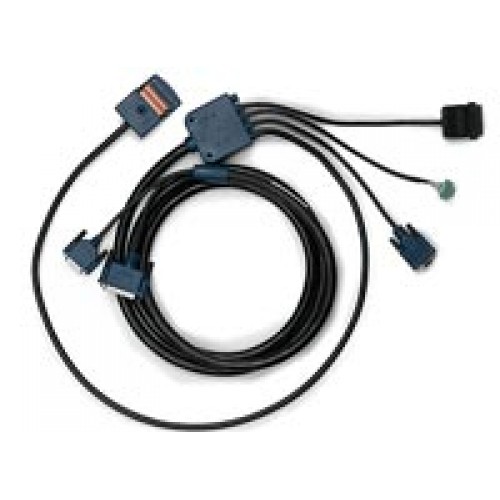

NI UMI to AKD Drive Cable

The NI UMI to AKD Drive Cable connects a Universal Motion Interface to an AKD servo drive in an NI motion-control system. NI lists 2.5 m versions for different UMI models; the exact variant for this catalog record requires confirmation.

ManufacturerNational Instruments

ModelUMI to AKD Drive Cable

Product TypeServo drive interface cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: UMI to AKD Drive Cable

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Cable length2.5 m

ConnectionUMI to AKD servo drive

Selection requirementCable variant must match the UMI model
