NI UMI-7764 Series

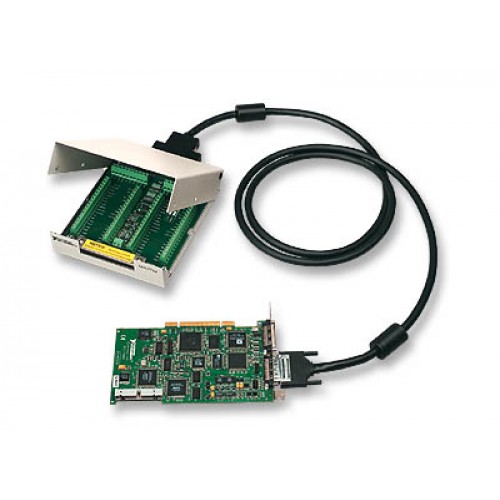

The NI UMI-7764 connects NI motion controllers to third-party stepper or servo drives for up to four axes.

ManufacturerNational Instruments

ModelUMI-7764 Series

Product TypeUniversal Motion Interface accessory

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: UMI-7764 Series

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

AxesUp to four

Controller familiesNI 7330, 7340, 7350

Required supplyExternal +5 VDC
