National Instruments TB-9214 Isothermal terminal block

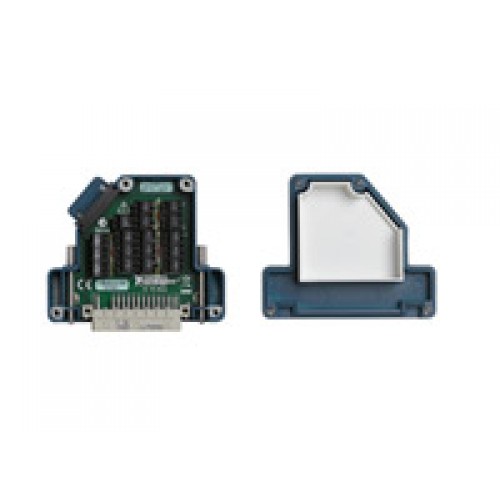

1 image: Click to enlarge

National Instruments · NI C Series; CompactDAQ and CompactRIO through NI-9214

NI TB-9214

The NI TB-9214 is an isothermal terminal block for the NI-9214 C Series Temperature Input Module. It connects directly to the module’s front-panel I/O connector for use in CompactDAQ and CompactRIO systems.

ManufacturerNational Instruments

ModelTB-9214

Part Number781511-01

Product TypeIsothermal terminal block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: TB-9214

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Accessory typeIsothermal terminal block

Compatible moduleNI-9214

Module connection48-pin female DIN

Manufacturer part number781511-01

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The TB-9214 provides the front-mounted signal termination for the NI-9214 thermocouple input module. NI identifies it as exclusively compatible with the NI-9214, rather than a general-purpose C Series terminal block.

The NI-9214 measurement design uses an isothermal terminal block with multiple cold-junction compensation sensors and a component layout that minimizes thermal gradients. The TB-9214 is the terminal-block accessory in this arrangement, not the data acquisition module itself.

Direct front-panel connection to the NI-9214.
Isothermal terminal-block design supports thermocouple measurement accuracy.
Multiple cold-junction compensation sensors are located in the terminal block.
Screw-terminal signal connections for the NI-9214.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	781511-01
Back-end connector	48-pin female DIN
Mounting arrangement	Front mount on NI-9214
Signal termination	Screw terminal
Compatible temperature input module	NI-9214 exclusively

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

System platforms using the NI-9214 module

NI-9214

C Series thermocouple input module

TB-9214

Front-mount isothermal terminal block

Use only with the NI-9214. This terminal block is not a standalone temperature acquisition module.
