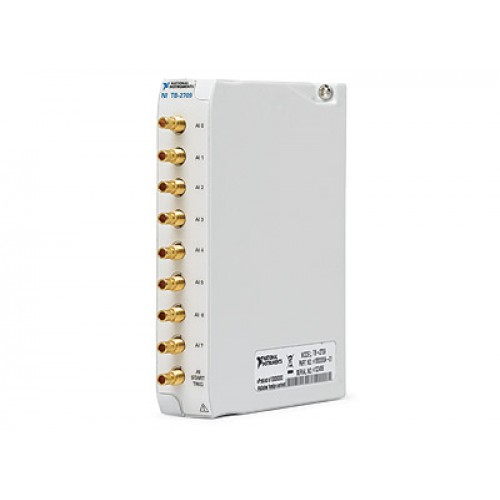

NI TB-2709
1 image: Click to enlarge
National Instruments · PXI

NI TB-2709

The NI TB-2709 is a front-mount terminal block for selected S Series PXI multifunction I/O modules. It provides nine SMB connectors and a 14-pin connector for digital signal access.

ManufacturerNational Instruments
ModelTB-2709
Part Number779554-01
Product TypeFront-mount SMB terminal block
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: TB-2709

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Part number779554-01
Signal connectionsNine SMB connectors plus 14-pin I/O
Supported modulesPXI-6122, PXI-6123, PXI-6132 and PXI-6133
MountingDirect attachment to the module front connector
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The TB-2709 provides signal connections at the front of a supported PXI DAQ module. Its SMB connectors provide analog signal access, while its 14-pin I/O connector provides digital signal access.

  • Direct module attachment eliminates an external module-to-terminal-block cable.
  • SMB connections expose AI 0–7 and PFI 0/AI Start Trig.
  • Channel switches support floating or ground-referenced signal sources.
Verified specifications

Technical data

Verified product specifications.

Module-side connector68-pin female SCSI-II
SMB connectors9 connectors
Auxiliary connector14-pin Molex Micro-Fit
Dimensions10.7 × 8.6 × 2.0 cm
Weight144.6 g
Operating temperature0 to 55 °C
Storage temperature-20 to 70 °C
Relative humidity10 to 90, noncondensing %
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

S Series PXI DAQ

Supported host module family

TB-2709

Front-mount signal connection accessory

Compatibility

Supports PXI-6123 and PXI-6133; PXI-6122 and PXI-6132 access is limited to the first four analog input channels.

Observe the host module's I/O limits; never exceed 42 Vpk/60 VDC at the TB-2709. See the installation guide.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI TB-2709 Product PageProduct Page · ni.com
Open →
NI TB-2709 Installation Guide, 374268B-01Installation Guide · download.ni.com
Open →
NI 61xx DAQ Cable and Accessory Compatibility GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the TB-2709 a matrix switch?

No. NI identifies the TB-2709 as a terminal block for PXI multifunction I/O modules.

Does it require a cable to connect to the PXI module?

No. It attaches directly to the supported PXI module's front connector.

How are digital signals connected?

The guide specifies the MFIT-Pigtail cable assembly, part number 194123-01, for the 14-pin connector.
