NI TB-2706

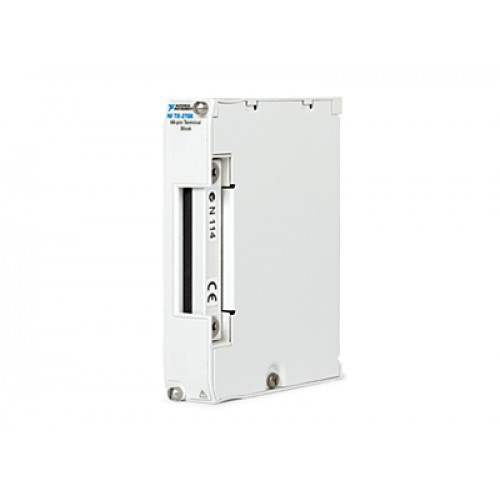

The NI TB-2706 is a front-mount terminal block for supported PXI/PXIe DAQ modules. It provides 70 screw terminals for analog input, analog output, counter/timer, and digital I/O connections.

ManufacturerNational Instruments
ModelTB-2706
Part Number779183-01
Product TypeFront-mount screw terminal block
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: TB-2706

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Module connection68-pin male VHDCI
Field wiring70 screw terminals
MountingDirect front-panel attachment; no external cable required
ConstructionPCB and metal enclosure with strain relief
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The TB-2706 brings supported multifunction I/O signals to screw-terminal wiring connections. Its integrated PCB, metal enclosure, and strain relief form a front-mounted wiring assembly.

On supported multi-connector modules, the TB-2706 attaches to Connector 0 and prevents access to Connector 1. Select the terminal block against NI's model-specific accessory guide rather than connector appearance alone.

  • Screw-terminal access for supported analog, digital, and counter/timer signals.
  • Direct module attachment eliminates an external interconnect cable.
  • Metal enclosure incorporates wiring strain relief.
Verified specifications

Technical data

Verified product specifications.

I/O connectorOne 68-position male VHDCI
Screw terminals70
Terminal typeAngled entry, 3.81 mm pitch
Wire gauge26–16 AWG
Dimensions10.7 × 8.6 × 2.0 cm
Projection from module face8.6 cm
Weight289 g
Operating temperature0 to 55 °C
Storage temperature−20 to 70 °C
Relative humidity10–90, noncondensing %
Input voltage restrictionNot designed for input voltages greater than 42 V peak or 60 VDC; connected DAQ limits also apply
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Supported PXI/PXIe DAQ module

Measurement hardware

TB-2706

Front-mounted screw-terminal interface

Connection path

Module front connector to screw-terminal field wiring

Verify the exact module in NI's accessory guide; Connector 1 is inaccessible after installation on supported dual-connector modules.
