NI SHC68-C68-S
1 image: Click to enlarge
National Instruments · NI switching, motion, and selected DAQ systems

NI SHC68-C68-S

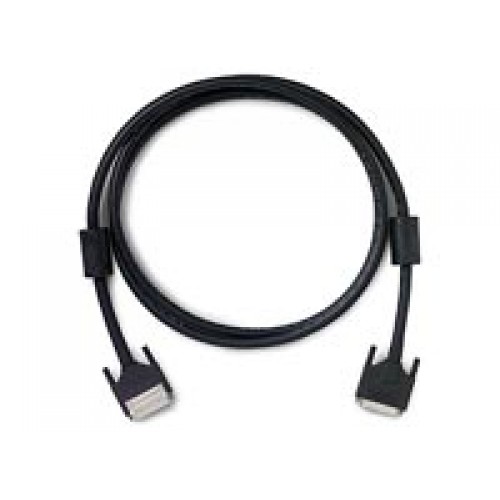

The NI SHC68-C68-S is a shielded cable with 68-pin VHDCI connectors at both ends. Its wire pairings serve switching and motion applications; DAQ use requires a specific recommendation.

ManufacturerNational Instruments
ModelSHC68-C68-S
Part Number186380-0R5 · 186380-02
Product TypeShielded interconnect cable
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SHC68-C68-S

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Connections68-pin VHDCI at both ends
Documented variants0.5 m and 2 m; catalog unit length unspecified
Conductors30 AWG signal and +5 V wires
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This cable supports custom VHDCI breakout fixtures rather than accessories requiring a SCSI connector.

NI lists the SHC68-C68-S among the PXI-2535 accessories, with separate part numbers for its 0.5 m and 2 m versions. The supplied catalog record does not identify which length is represented.

  • Male VHDCI plugs on both ends.
  • Shielding around twisted pairs and the complete assembly.
  • Twisted analog pairs and selected digital lines.
Verified specifications

Technical data

Verified product specifications.

Connector pitch0.8 mm
Cable outer diameter9.7 mm
Bend radius117 mm
0.5 m variant part number186380-0R5
2 m variant part number186380-02
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

68-pin VHDCI

Connection interface

SHC68-C68-S

Shielded cable

Compatibility

Listed as a cable accessory for the NI PXI-2535.

Confirm the exact device recommendation and cable length before selection.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 68-Pin VHDCI Cable GuideCable Specification And Selection Guide · ni.com
Open →
NI PXI-2535 Specifications — Cable Accessory TableSpecifications PDF · download.ni.com
Open →
NI DAQ Cable and Accessory Compatibility GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which length corresponds to each documented part number?

NI lists 186380-0R5 as 0.5 m and 186380-02 as 2 m. This catalog record does not specify the unit's length or part number.

Is this cable documented for the NI PXI-2535?

Yes. The NI PXI-2535 specifications list the SHC68-C68-S shielded VHDCI-to-VHDCI cable in the accessory table.
