NI SHC68-68-RMIO
1 image: Click to enlarge
National Instruments · NI R Series Multifunction RIO

NI SHC68-68-RMIO

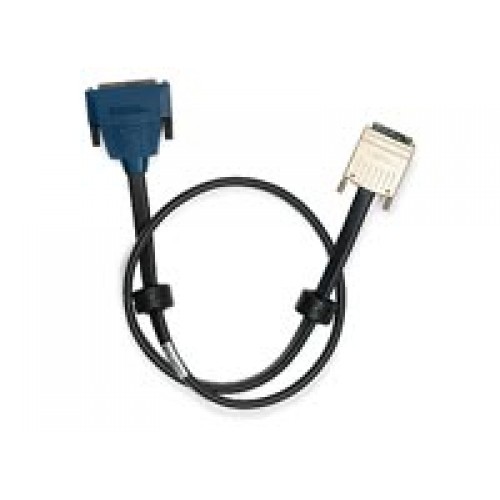

The NI SHC68-68-RMIO is a shielded cable for connecting supported R Series multifunction I/O ports to terminal blocks. NI also identifies this cable as SHC68M-68F-RMIO; documented variants are 1 m and 2 m long.

ManufacturerNational Instruments
ModelSHC68-68-RMIO
Part Number189588-01 · 189588-02
Product TypeShielded multifunction I/O cable
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SHC68-68-RMIO

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformNI R Series Multifunction RIO
Connection68-pin male VHDCI to 68-pin female D-Type
Documented lengths1 m and 2 m; catalog record does not identify the variant
Terminal blockSCB-68 in documented NI 783xR/784xR/785xR RMIO configurations
