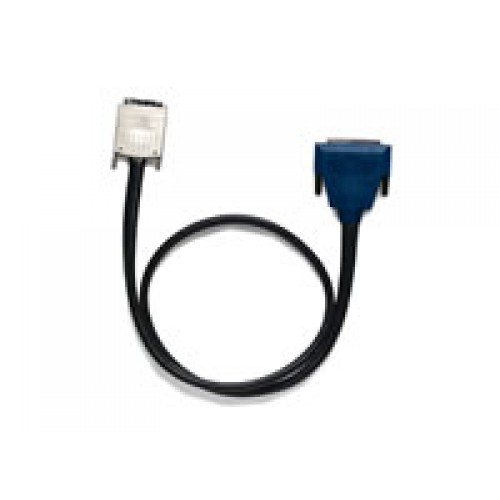

NI SHC68-68-EPM, front view additional view

7 images: additional views below.Click to enlarge

National Instruments · NI multifunction DAQ

NI SHC68-68-EPM

The NI SHC68-68-EPM is a shielded, twisted-pair multifunction DAQ cable with a 68-pin VHDCI male device connector and a 68-pin SCSI female accessory connector.

ManufacturerNational Instruments

ModelSHC68-68-EPM

Part Number192061-0R5 · 192061-01

Product TypeShielded multifunction DAQ cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SHC68-68-EPM

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Device connector68-pin VHDCI male

Accessory connector68-pin SCSI female

ConstructionShielded cable with twisted pairs

Manufacturer length variants0.5, 1, 2, 5 and 10 m; this record does not identify a length

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

NI also refers to this model as the SH68M-68F-EPM. It connects DAQ devices to accessories or cables with SCSI connectors and can support custom DAQ cabling.

The cable uses individually shielded analog pairs, separate analog and digital groupings, and overall shielding. Select it using the device-specific cable guide rather than connector appearance alone.

Enhanced shielding and specific cable pairings designed to improve noise performance.
68-conductor construction for supported multifunction DAQ connections.
30 AWG signal conductors and 26 AWG +5 V conductors.

Verified specifications

Technical data

Verified product specifications.

Device-side connector	68-pin VHDCI male
Accessory-side connector	68-pin SCSI female
Conductor count	68
Analog and digital signal conductor gauge	30 AWG
+5 V conductor gauge	26 AWG
Cable outer diameter	13.7 mm
Bend radius	165 mm

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Multifunction DAQ

Device and accessory connection ecosystem

SHC68-68-EPM

Shielded VHDCI-to-SCSI interconnect

Compatibility

NI lists SHC68-68-EPM for supported 63xx multifunction I/O devices. Compatibility depends on the model and connector number; USB devices must have the applicable VHDCI mass-termination connection.

Verify the exact DAQ model, connector number, accessory and required cable length before selection.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SHC68-68-EPM Product PageManufacturer Product Page · ni.com

Open →

Detailed Specifications for the SHC68-68-EPM CableTechnical Specifications · ni.com

Open →

SHC68-68-EPM Product CertificationsProduct Certifications · ni.com

Open →

68-Pin VHDCI Cables: DAQ Multifunction I/O Cable GuideTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which connectors does the SHC68-68-EPM use?

It has a 68-pin VHDCI male connector at the device end and a 68-pin SCSI female connector at the accessory end.

Which part number corresponds to each length?

NI lists 192061-0R5 for 0.5 m, 192061-01 for 1 m, 192061-02 for 2 m, 192061-05 for 5 m and 192061-10 for 10 m. The supplied catalog record does not identify which variant this item represents.

Does it work on every connector of a supported 63xx device?

No. NI specifies connector restrictions. For example, it is recommended for connector 0 on NI 6365, but not connectors 1, 2 or 3. Check the device-specific compatibility table.
