National Instruments SHC68-68 Basic-shielded multifunction DAQ cable

1 image: Click to enlarge

National Instruments · NI DAQ

NI SHC68-68

Name: NI SHC68-68
Brand: National Instruments

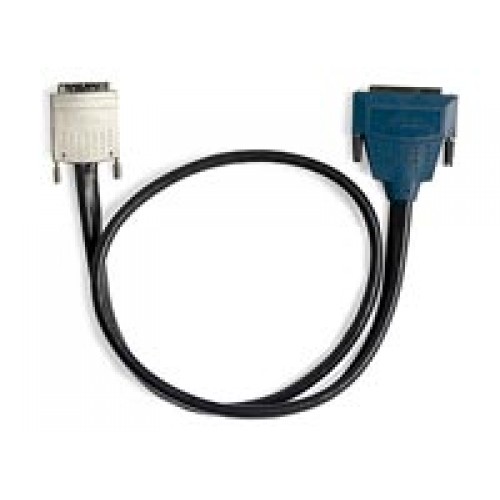

The NI SHC68-68 is a basic-shielded, twisted-pair multifunction cable for connecting NI DAQ hardware to SCSI-connected accessories or cables.

ManufacturerNational Instruments

ModelSHC68-68

Part Number191945-01 · 191945-02

Product TypeBasic-shielded multifunction DAQ cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SHC68-68

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Device end68-pin VHDCI male

Accessory end68-pin SCSI female

ConstructionBasic shielding with twisted pairs

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This cable provides a VHDCI-to-SCSI connection for supported NI data acquisition systems. NI also describes its use in custom DAQ cabling.

VHDCI male device connector.
SCSI female accessory connector.
Twisted-pair construction with basic shielding.

Verified specifications

Technical data

Verified product specifications.

Device connector	68-pin, 0.8 mm VHDCI male
Accessory connector	68-pin, 0.050-inch SCSI D-Type female
Signal and +5 V wire gauge	30 AWG
Cable outer diameter	9.7 mm
Bend radius	117 mm
Documented length variants	191945-01: 1 m; 191945-02: 2 m

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI DAQ

Data acquisition ecosystem

SHC68-68

Multifunction interconnect cable

Compatibility

PXIe-6349: recommended for Connector 1; Connector 0 use is conditional on not requiring its digital I/O lines.

Confirm the device model and connector assignment before selecting a cable.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI SHC68-68 Product SupportProduct Page · ni.com

Open →

SHC68-68 Dimensional DrawingsDimensional Drawing Index · ni.com

Open →

68-Pin VHDCI Cables: DAQ Multifunction I/O Cable GuideCable Specifications And Selection Guide · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How does SHC68-68 differ from SHC68-68-EPM?

SHC68-68 has basic assembly shielding without shields separating analog and digital signals. The EPM design adds shielding and specific wire pairings.

Which PXIe-6349 connector uses SHC68-68?

NI recommends SHC68-68 for Connector 1 and SHC68-68-EPM for Connector 0. NI permits SHC68-68 on both connectors when the application does not require Connector 0 digital I/O.
