National Instruments SH37F-37M Shielded multifunction I/O cable

1 image: Click to enlarge

National Instruments · NI measurement and control connectivity

NI SH37F-37M

Name: NI SH37F-37M
Brand: National Instruments

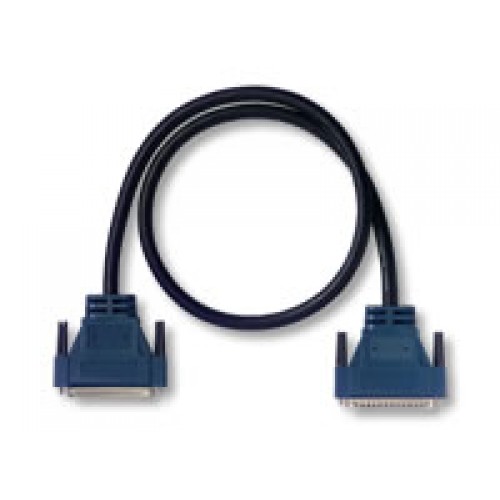

The NI SH37F-37M is a shielded I/O cable with 37-pin female and male D-SUB connectors. NI documents 1 m and 2 m versions; the supplied catalog record does not identify a specific length.

ManufacturerNational Instruments

ModelSH37F-37M

Part Number778621-01 · 778621-02

Product TypeShielded multifunction I/O cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SH37F-37M

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Connectors37-pin female D-SUB to 37-pin male D-SUB

ConstructionShielded cable

Documented lengths1 m and 2 m; catalog variant unspecified

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SH37F-37M connects compatible CompactRIO modules to accessories or cables with D-SUB connectors. Its use is not restricted to CompactRIO: NI also documents this cable for selected 37-pin DAQ devices.

Female-to-male 37-pin D-SUB connection.
Shielded construction on the 778621-01 and 778621-02 variants.
Length-specific variants: SH37F-37M-1 at 1 m and SH37F-37M-2 at 2 m.

Verified specifications

Technical data

Verified product specifications.

Front-end connector	37-pin female D-SUB
Back-end connector	37-pin male D-SUB
Shielding	Shielded
Twisted pairing	No
Length — 778621-01	1 m
Length — 778621-02	2 m
Wire gauge	26 AWG
Maximum current per line	1.2 A

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

37-pin D-SUB connectivity

Connection interface

SH37F-37M

Shielded I/O interconnect

Compatibility

NI's M Series manual recommends the SH37F-37M for 37-pin connections and lists CB-37F-HVD, CB-37FV, CB-37FH, and CB-37F-LP terminal blocks for the PCI-6221 (37-pin).

Confirm the device pinout, electrical limits, and required cable length before selecting a variant.
