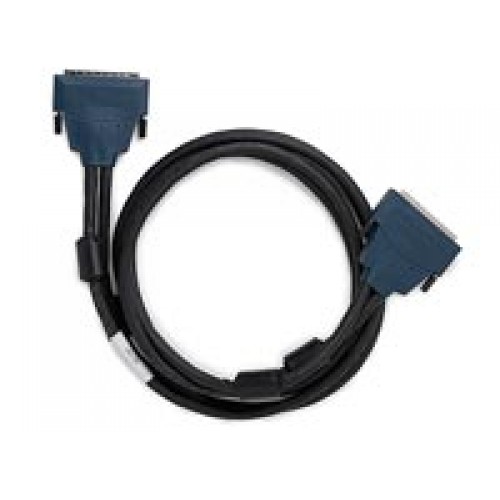

National Instruments SH100100 Shielded multifunction DAQ cable

1 image: Click to enlarge

National Instruments · NI multifunction DAQ

NI SH100100

Name: NI SH100100
Brand: National Instruments

The NI SH100100 is a shielded, twisted-pair cable for connecting supported NI multifunction DAQ devices to 100-pin accessories. It uses 100-pin male SCSI-II connectors at both ends.

ManufacturerNational Instruments

ModelSH100100

Product TypeShielded multifunction DAQ cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SH100100

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Connection100-pin male SCSI-II at both ends

ConstructionShielded twisted pairs

Also documented asSH100-100 / SH100M-100M

Wiring distinctionDifferent wire mapping from SH100M-100M Flex

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SH100100 provides the cable connection between specified 100-pin E Series DAQ hardware and signal accessories. NI's PCI E Series manual lists it for the PCI-6031E, PCI-6033E, and PCI-6071E.

Do not confuse this model with the SH100-100-F, also called SH100M-100M Flex. NI documents different internal wiring: the SH100100 has shielded twisted pairs with shielding connected to ground pins, while the Flex version is straight-through.

100-pin-to-100-pin connection for supported multifunction DAQ accessories.
Male SCSI-II connectors on both ends.
Shielded twisted-pair construction with shielding connected to ground pins.

Verified specifications

Technical data

Verified product specifications.

Connector, end 1	100-pin male SCSI-II
Connector, end 2	100-pin male SCSI-II
Cable shielding	Shielded
Conductor arrangement	Twisted pairs

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

100-pin multifunction DAQ

Device and accessory interface

SH100100

Shielded interconnect cable

Documented device examples

PCI-6031E, PCI-6033E, PCI-6071E

Do not substitute SH100-100-F solely on connector appearance; confirm the required wire mapping in the device documentation.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SH100M-100M Cable — NI product specificationsProduct Page · ni.com

Open →

SH100M-100M Flex and SH100100 Cable SpecificationsKnowledge Article · knowledge.ni.com

Open →

6023E/6024E/6025E User ManualUser Manual · download.ni.com

Open →

Archived NI 60xx/60xxE Cable and Accessory Compatibility GuideTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is SH100100 the same as SH100M-100M Flex?

No. NI identifies SH100100 as the SH100-100 or SH100M-100M cable, with different wire mapping from SH100M-100M Flex, formerly SH100-100-F. The Flex cable is straight-through.

Which PCI E Series devices list the SH100100 cable?

NI's PCI E Series manual lists PCI-6031E, PCI-6033E, and PCI-6071E for connection to 100-pin signal accessories using SH100100.

What length is this catalog item?

The supplied record does not identify a length-specific part number. Confirm the cable label and measured length before selecting it for an installation.
