National Instruments SCB-68 Shielded I/O screw-terminal connector block

1 image: Click to enlarge

National Instruments · NI DAQ

NI SCB-68

Name: NI SCB-68
Brand: National Instruments

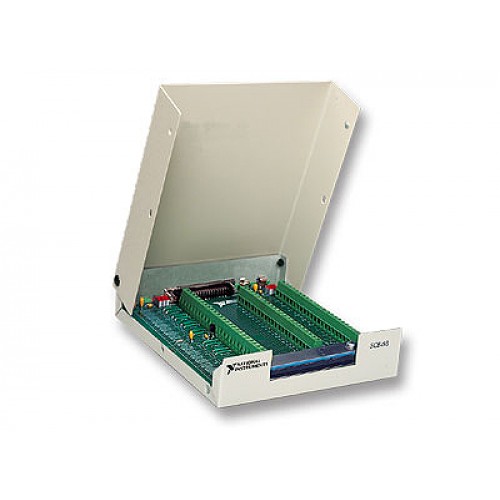

The NI SCB-68 is a shielded I/O connector block with 68 screw terminals for connecting signals to compatible NI DAQ devices. It includes onboard cold-junction compensation and general-purpose breadboard areas for custom circuitry.

ManufacturerNational Instruments

ModelSCB-68

Part Number776844-01

Product TypeShielded I/O screw-terminal connector block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCB-68

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Signal connections68 screw terminals

DAQ-side connector68-pin male SCSI type

Temperature measurement supportOnboard cold-junction compensation sensor

Custom circuitryTwo general-purpose breadboard areas

Electrical isolationNo electronic isolation
