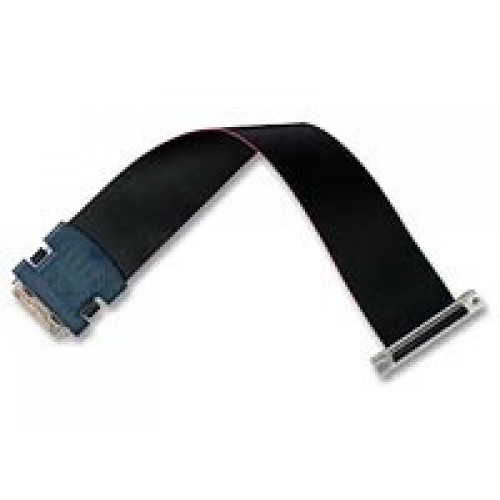

National Instruments RC68-68 Unshielded DAQ ribbon cable

1 image: Click to enlarge

National Instruments · NI DAQ

NI RC68-68

Name: NI RC68-68
Brand: National Instruments

The NI RC68-68 is an unshielded ribbon cable connecting a 68-pin VHDCI device interface to a 68-pin SCSI D-Type accessory interface. NI documents 0.25 m, 0.5 m, and 1 m variants; this catalog record does not identify a specific length.

ManufacturerNational Instruments

ModelRC68-68

Part Number187252-0R25 · 187252-0R5

Product TypeUnshielded DAQ ribbon cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: RC68-68

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Device connector68-pin male VHDCI

Accessory connector68-pin female SCSI D-Type

ConstructionUnshielded flat ribbon cable

Documented lengths0.25 m, 0.5 m, and 1 m; variant must be confirmed

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The RC68-68 provides a ribbon-cable connection between supported NI DAQ hardware and external accessories. Its device end uses VHDCI, while its accessory end uses the 68-position 0.050-inch D-Type connector that NI also describes as SCSI.

NI describes the RC68-68 as highly flexible. Because it is unshielded, review the connected device's electromagnetic compatibility requirements before selecting it for an installation.

68-pin connectors at both ends, with different device-side and accessory-side connector formats.
Highly flexible unshielded ribbon construction.
No twisted-pair conductors.

Verified specifications

Technical data

Verified product specifications.

Device-side connector	68-pin male VHDCI, 0.8 mm pitch
Accessory-side connector	68-pin female SCSI D-Type, 0.050-inch pitch
Shielding	None
Twisted pairs	None
Signal and +5 V conductor gauge	30 AWG
Length by manufacturer part number	187252-0R25: 0.25 m; 187252-0R5: 0.5 m; 187252-01: 1 m

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI DAQ 68-pin VHDCI cabling

Device and accessory interconnection

RC68-68

Unshielded VHDCI-to-SCSI ribbon cable

Compatibility

NI explicitly lists the RC68-68 for the DAQCard-6024E connection to 68-pin accessories. This does not imply compatibility with PCI-6024E, which uses a different cable connector format.

Confirm the exact device, accessory, and cable length. An unshielded cable may not meet the connected device's EMC installation requirements.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI R68F-68F Cable Product Page — Includes RC68-68 VariantsManufacturer Product Page · ni.com

Open →

68-Pin VHDCI Cables: DAQ Multifunction I/O Cable GuideSpecifications And Connector Guide · ni.com

Open →

NI DAQ Custom Cables, Replacement Connectors, and ScrewsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the RC68-68 have the same connector on both ends?

No. The device end is 68-pin male VHDCI; the accessory end is 68-pin female SCSI D-Type.

Is the RC68-68 shielded?

No. It has neither shielding nor twisted pairs. Check the connected device's EMC installation instructions before use.

Which length does this catalog record represent?

The supplied record does not specify a length or manufacturer part number. NI documents 0.25 m, 0.5 m, and 1 m RC68-68 variants, so confirm the item-specific part number before selection.
