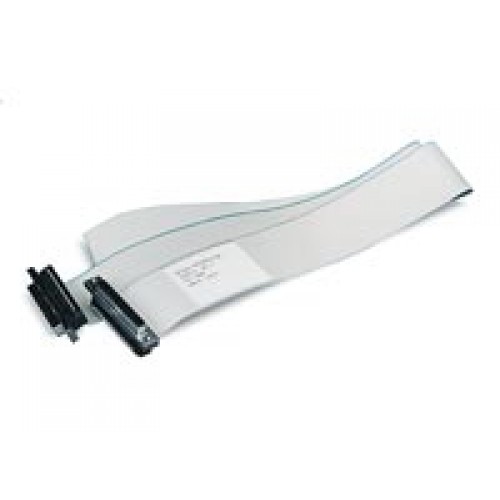

National Instruments R6868 Unshielded 68-pin ribbon cable

1 image: Click to enlarge

National Instruments · NI DAQ connectivity

NI R6868

Name: NI R6868
Brand: National Instruments

The NI R6868 is an unshielded, 68-conductor flat ribbon cable for connecting supported NI devices to 68-pin signal accessories. The exact length of this catalog item must be confirmed from its part-number label.

ManufacturerNational Instruments

ModelR6868

Part Number182482-01 · 182482-0R25

Product TypeUnshielded 68-pin ribbon cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: R6868

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Cable constructionUnshielded flat ribbon

Connections68-pin female SCSI type at both ends

Documented variants182482-01: 1 m; 182482-0R25: 0.25 m

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The R6868 provides a ribbon-cable connection between supported NI measurement hardware and external signal accessories. NI documents its use with selected 670x, PCI/PXI-671x, and 673x analog-output devices.

NI groups R6868 variants under the R68F-68F Cable product page, alongside RC68-68 variants with different connector arrangements. Select by the specific part number and device compatibility table, not the grouped family name alone.

68-conductor flat ribbon construction.
Two 68-pin connectors for supported device-to-accessory connections.
Documented as an unshielded cable option in NI analog-output accessory guidance.

Verified specifications

Technical data

Verified product specifications.

Conductor count	68 conductors
Connector configuration	68-pin female SCSI type to 68-pin female SCSI type
Shielding	Unshielded
Length — part number 182482-01	1 m
Length — part number 182482-0R25	0.25 m

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

68-pin DAQ signal connectivity

Device-to-accessory interface

R6868

Unshielded ribbon interconnect

Compatibility

NI's 67xx guide lists R6868 variants for 6703, 6704, 6711, 6713, 6731, and 6733 devices. Consult the guide for the corresponding accessory combinations.

Confirm the device-specific cable recommendation and EMC requirements; a matching pin count alone does not establish compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI R68F-68F Cable Product PageProduct Page · ni.com

Open →

67xx Analog Output Cable and Accessory CompatibilityCompatibility Guide · ni.com

Open →

R68F-68F Cable Product CertificationsProduct Certifications · ni.com

Open →

BNC-2120 Installation Guide — Cabling Restrictions and EMC GuidanceTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which R6868 part numbers identify the documented lengths?

NI lists 182482-01 as 1 m and 182482-0R25 as 0.25 m. The supplied catalog record does not identify which variant this item represents.

Can the R6868 be used with every 68-pin NI DAQ device?

No. Check the device-specific cable table. For example, NI's BNC-2120 installation guide explicitly prohibits R6868 use with NI 6115/6120 devices and specifies SH68-68-EPM instead.
