National Instruments R6850 68-to-50-pin ribbon cable assembly kit

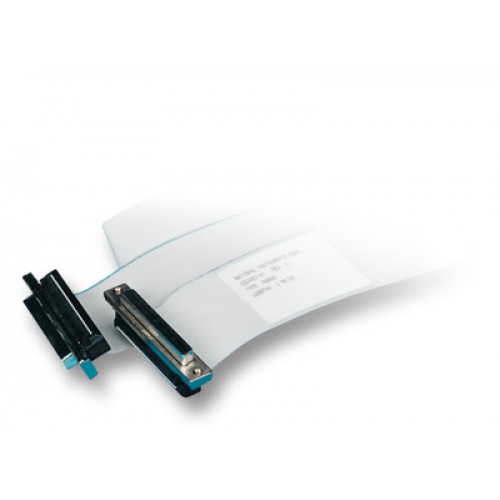

1 image: Click to enlarge
National Instruments · NI data acquisition connectivity

NI R6850

The NI R6850 is a cable assembly kit comprising a 50-conductor NB1 ribbon cable and a 68-to-50-pin adapter. NI documents it as a 50-pin E Series connection option for the PCI-6023E and PCI-6024E.

ManufacturerNational Instruments
ModelR6850
Product Type68-to-50-pin ribbon cable assembly kit
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: R6850

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Accessory typeRibbon cable assembly kit
Connection68-pin to 50-pin
Cable50-conductor NB1 ribbon cable
Documented DAQ devicesPCI-6023E and PCI-6024E
