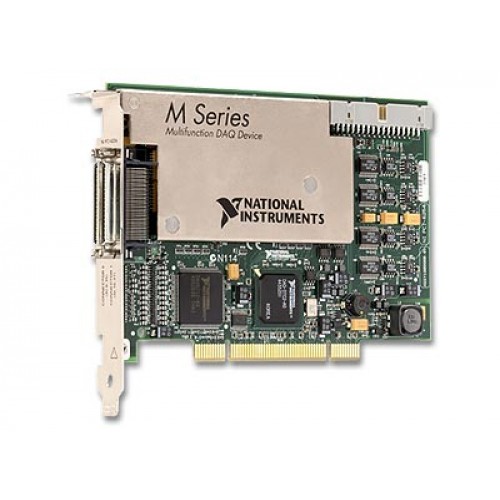

The NI PCI-6254 is an M Series PCI data acquisition card with 32 analog input channels and 16-bit resolution.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCI-6254 belongs to NI's M Series DAQ family and uses the PCI bus. NI lists this model among the devices supported by NI-DAQmx 17.0.
Its dual-connector VHDCI arrangement requires attention to connector assignments when selecting external wiring. NI's 62xx cable and accessory guide identifies the PCI-6254 and documents dual-connector limitations.
Verified product specifications.
| Analog input configuration | 32 single-ended or 16 differential channels |
|---|---|
| ADC resolution | 16 bits |
| Maximum single-channel sample rate | 1.25 MS/s |
| Maximum aggregate multichannel sample rate | 1.00 MS/s |
| Analog input ranges | ±0.1, ±0.2, ±0.5, ±1, ±2, ±5, ±10 V |
| Digital I/O | 48 lines |
| Counters/timers | 2, each 32-bit |
| I/O connectors | Two 68-pin VHDCI |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
DAQ family
Host interface
Data acquisition card
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
The NI-DAQmx 17.0 readme lists the PCI version of the NI 6254. Confirm the intended driver release and operating system before integration.
Use NI's 62xx cable and accessory guide. The PCI-6254 appears in the dual-connector VHDCI group; review the associated limitations before selecting accessories.
