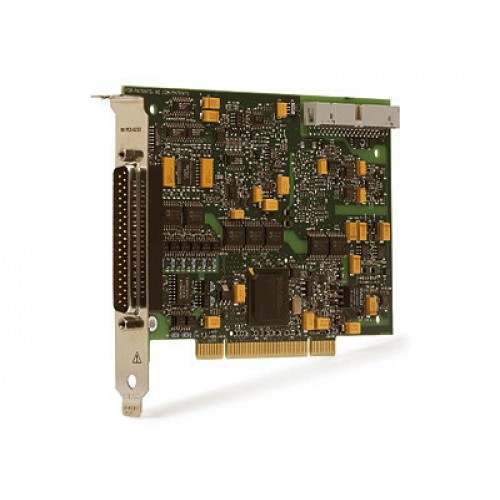

National Instruments PCI-6233 Bank-isolated multifunction data acquisition device
1 image: Click to enlarge
National Instruments · PCI

NI PCI-6233

The NI PCI-6233 is a bank-isolated PCI multifunction DAQ device with 16-bit analog input at up to 250 kS/s. It combines analog output, sinking digital outputs, and two 32-bit counters/timers.

ManufacturerNational Instruments
ModelPCI-6233
Part Number779619-01
Product TypeBank-isolated multifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6233

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog input16 single-ended or 8 differential channels
Input performance16-bit resolution; up to 250 kS/s
Digital I/O6 inputs and 4 sinking outputs
CountersTwo 32-bit counters/timers
Signal connector37-pin D-SUB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCI-6233 belongs to NI's isolated M Series DAQ family. Its analog inputs support single-ended or differential configurations for voltage acquisition.

The measurement circuitry references an isolated ground rather than the host chassis ground. Installation requires correct grounding and observance of the device's maximum working-voltage limits.

  • Selectable analog input ranges: ±0.2 V, ±1 V, ±5 V, and ±10 V.
  • Two analog output channels.
  • Static digital inputs and sinking digital outputs.
  • PFI terminals support timing and trigger routing.
Verified specifications

Technical data

Verified product specifications.

Host interfacePCI
Analog input channels16 single-ended or 8 differential channels
Analog input resolution16 bits
Maximum analog input sample rate250 kS/s
Simultaneous samplingNo
Analog input ranges±0.2, ±1, ±5, ±10 V
Analog output channels2 channels
Digital input channels6 channels
Digital output channels4, sinking channels
Counter/timers2, 32-bit
Isolation architectureBank isolation
I/O connector37-pin D-SUB
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI / M Series

Host interface and DAQ family

PCI-6233

Bank-isolated multifunction DAQ device

Driver ecosystem

NI-DAQmx

Check host PCI slot requirements, driver/OS support, and isolated-ground wiring before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCI-6233 Official Product PageProduct Page · ni.com
Open →
NI 6232/6233 User ManualUser Manual · docs-be.ni.com
Open →
NI 62xx Cable and Accessory Compatibility GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog input channels does the PCI-6233 support?

It supports 16 single-ended or 8 differential analog input channels with 16-bit resolution.

Does the PCI-6233 use sourcing or sinking digital outputs?

The PCI-6233 uses sinking outputs. The related NI 6232 uses sourcing outputs, so their output wiring differs.

Are analog inputs sampled simultaneously?

No. NI identifies the PCI-6233 as a non-simultaneous-sampling device.
