National Instruments · PCI

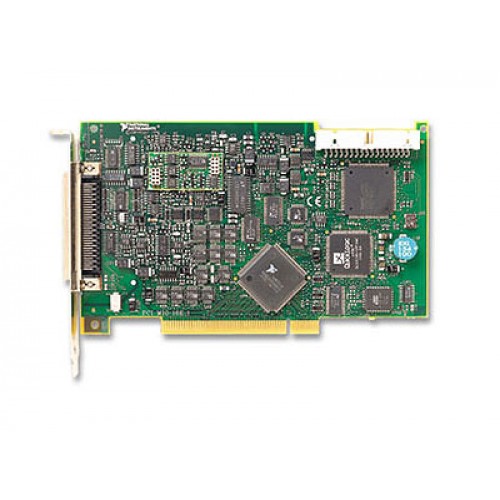

NI PCI-6070E (Legacy)

The NI PCI-6070E is a PCI multifunction data acquisition board with 16 analog inputs, two analog outputs, eight digital I/O lines and two counter/timers. NI documentation also identifies the PCI version as PCI-MIO-16E-1.

ManufacturerNational Instruments

ModelPCI-6070E (Legacy)

Part Number777305-01

Product TypeMultifunction data acquisition board

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCI-6070E (Legacy)

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs16 single-ended or 8 differential

Input resolution12-bit

Maximum sampling rate1.25 MS/s

Additional I/O2 AO, 8 DIO, 2 counter/timers

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This board combines analog acquisition, analog output, digital I/O and timing functions on a PCI device. Official NI driver documentation lists it under PCI-MIO-16E-1 (PCI-6070), so that designation is useful when locating legacy support information.

Software-selectable single-ended or differential analog inputs.
Two analog output channels alongside eight digital I/O lines.
Two 24-bit up/down counter/timers.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	16 single-ended or 8 differential
Analog input resolution	12 bit
Maximum analog input sampling rate	1.25 MS/s
Analog outputs	2 channels
Analog output resolution	12 bit
Digital I/O	8 lines
Counter/timers	2 up/down, 24-bit
Digital logic compatibility	5 V/TTL

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI

Host interface

PCI-6070E / PCI-MIO-16E-1

Multifunction DAQ board

Compatibility

Historical NI-DAQmx 8.3 documentation lists PCI-MIO-16E-1 (PCI-6070). This is historical support evidence, not confirmation of compatibility with current drivers or operating systems.

Check the board label and the intended driver/operating-system combination before integration; legacy documentation uses multiple model designations.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6070E/6071E Family SpecificationsSpecifications · download.ni.com

Open →

NI-DAQmx 8.3 ReadmeHistorical Driver Documentation · download.ni.com

Open →

6070E/6071E terminal summary and electrical specificationsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What name should I look for in older NI documentation?

Look for PCI-MIO-16E-1. NI's family specifications identify it as NI 6070E, and historical driver documentation lists PCI-MIO-16E-1 (PCI-6070).

Is the PCI-6071E the same model?

No. The shared specifications list 64 single-ended or 32 differential inputs for the PCI-6071E, compared with 16 single-ended or eight differential inputs for the 6070E.
