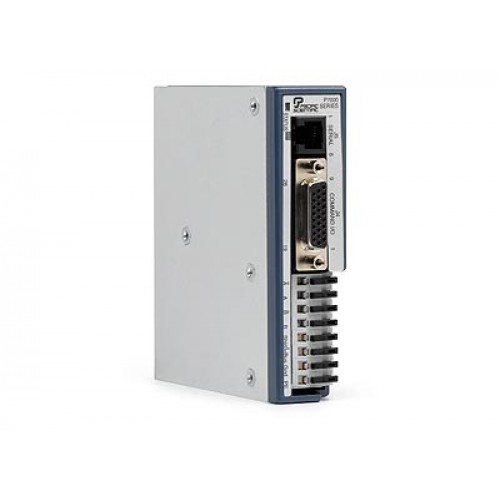

National Instruments P70530 DC microstepping stepper motor drive
1 image: Click to enlarge
National Instruments · P7000 Series

NI P70530

The NI P70530 is a P7000-series DC microstepping drive for stepper motor control. NI documents its integration with NI 7330/7340/7350 motion controllers through a Universal Motion Interface.

ManufacturerNational Instruments
ModelP70530
Product TypeDC microstepping stepper motor drive
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: P70530

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Power input20–75 VDC
Maximum output current5 A RMS at 0–40 °C
Command interfaceStep/direction
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

In the documented NI motion system, the P70530 connects to the motion controller through a UMI and an appropriate P7000 direct-connect cable. The drive requires an external DC power supply and a suitable stepper motor.

  • DIP-switch configuration for listed NI stepper motors.
  • P7000 Tools serial configuration for third-party motors.
  • Configurable step resolution and current reduction.
Verified specifications

Technical data

Verified product specifications.

DC supply voltage20–75 VDC
Maximum output current at 0–40 °C5 A RMS
Nominal motor inductance range2–15 mH
Maximum step input frequency2 MHz
Command I/O connector26-position high-density female D-sub, J4
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Catalog brand and documented motion-system provider

P7000 Series

Stepper drive family

P70530

DC microstepping drive

Documented integration

NI 7330/7340/7350 controller → UMI → P7000 drive → stepper motor

Confirm the full suffix before assuming indexing capability.
