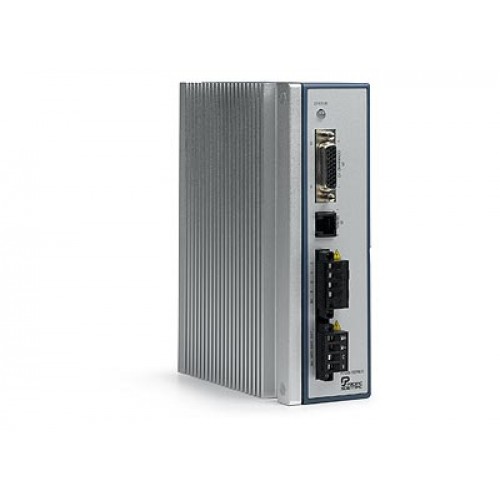

The P70360 is the AC-powered stepper drive in the P7000 Series, documented for integration with NI 7330, 7340, and 7350 motion controllers.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
NI's integration guide places the P70360 between a Universal Motion Interface and a stepper motor. The documented system uses a motion controller, appropriate cables, and a separately powered UMI.
Verified product specifications.
| AC input | 120/240, 50/60 Hz VAC |
|---|---|
| Maximum output current | 2.5 at 0–40 °C A RMS |
| Maximum output power | 350 W |
| Maximum step input frequency | 2 MHz |
| Operating temperature | 0–40 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Motion controller
Controller-to-drive interface
AC stepper drive
NI documents integration with 7330/7340/7350 controllers through UMI-7764 or UMI-7772/7774 interfaces and the appropriate P7000 direct-connect cable.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
The P70360 uses AC input; the P70530 is the DC-powered model.
NI's guide permits DIP-switch setup for supported NI motors. Third-party motors require P7000 Tools and an RS-232 configuration cable.
No. RS-485 is specific to the R4 option.
