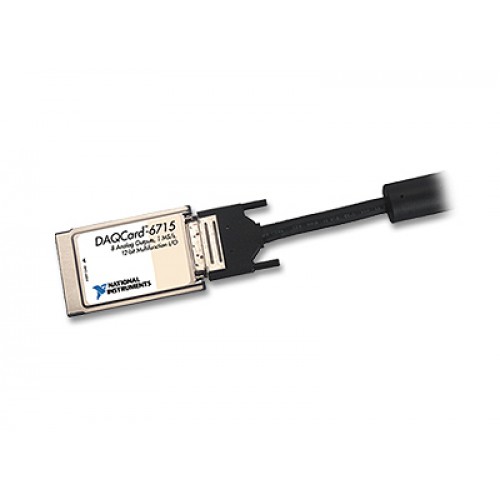

The NI DAQCard-6715 is a PCMCIA analog output card with eight 12-bit voltage outputs, eight TTL-compatible digital I/O lines and two 24-bit counter/timers.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This Analog Output Series device combines voltage generation, digital I/O and timing functions in a PCMCIA card. Each analog output channel can select an internal or external reference in software; output ranges remain bipolar.
Waveform performance depends on the number of active channels and whether data comes from the onboard FIFO or host memory. The single-channel maximum should not be applied to an eight-channel configuration.
Verified product specifications.
| Analog output channels | 8 channels |
|---|---|
| Analog output resolution | 12 bits |
| Analog output ranges | ±10 V or ±EXT REF |
| Local FIFO maximum update rate | 1,000 with 1 channel; 480 with 8 channels kS/s |
| Host-memory update rate, NI reference system | 833 with 1 channel; 105 with 8 channels; host activity dependent kS/s |
| FIFO capacity | 8192 samples |
| Digital I/O | 8 TTL-compatible lines |
| Counter/timers | 2 counters, 24-bit |
| I/O connector | 68-pin VHDCI |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host bus
Analog output device
Use the DAQCard-6715 entry in NI's 67xx cable and accessory guide.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI's archived PCMCIA adapter guidance states that third-party PCMCIA-to-USB converters are not supported. Do not assume converter compatibility.
NI-DAQ 7.3 lists the DAQCard-6715 under both NI-DAQmx and Traditional NI-DAQ support. This historical listing does not establish compatibility with current driver releases or operating systems.
