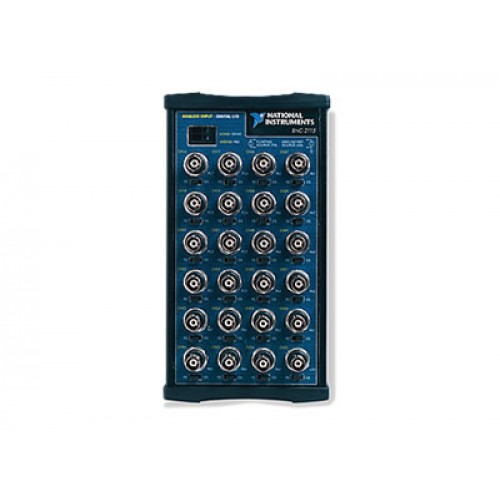

The NI BNC-2115 is a desktop or DIN rail-mountable terminal block for compatible NI DAQ devices. It provides 24 BNC connections and a rear 68-pin interface.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The BNC-2115 simplifies connections between measurement equipment and supported NI data acquisition hardware in laboratory, test, and production environments.
Its extended-I/O role is device-specific. NI documents analog-input access on selected M Series and X Series devices; the required DAQ connector and cable must be checked for the exact model.
Verified product specifications.
| BNC connectors | 24 |
|---|---|
| Rear I/O connector | 68-pin male |
| Screw terminal | 2-pin |
| Dimensions | 19.05 × 10.48 × 3.51 cm |
| Operating temperature | 0 to 70 °C |
| Storage temperature | -55 to 125 °C |
| Relative humidity | 5 to 90, noncondensing % |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Compatible data acquisition hardware
BNC terminal block
Cable selection and supported signal access depend on the DAQ model and connector number.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. It is a connection accessory for compatible NI DAQ hardware.
No. Compatibility depends on the DAQ model, connector number, and cable. For example, NI specifies Connector 1 for BNC-2115 analog-input access on the PXIe-6349.
The installation guide warns against input voltages greater than 42 V, even with a user-installed voltage divider. This warning is not a measurement-range specification; observe the connected DAQ device's limits.
