NI 9919

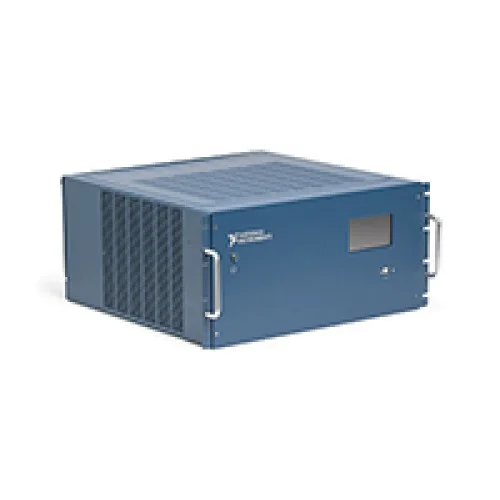

The NI 9919 is a 19-inch shielded rack-mount enclosure for CompactDAQ and CompactRIO systems. It is a mechanical enclosure accessory, not a multifunction data acquisition module.

ManufacturerNational Instruments

ModelNI 9919

Part Number783645-01 · 783363-01

Product TypeShielded rack-mount enclosure

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI 9919

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Mounting format19-inch rack

System familiesCompactDAQ and CompactRIO

ConstructionCold rolled steel with electroplated zinc finish

Ingress protectionIP30; indoor use only

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI 9919 provides a rack-mounted enclosure for supported CompactDAQ and CompactRIO hardware. NI lists versions with and without a display cutout; the exact version of this catalog item has not been established.

Use NI's installation guide and dimensional drawings to plan the mechanical installation, wiring and grounding. Chassis support must be checked by model rather than assumed for every CompactDAQ or CompactRIO system.

Shielded enclosure for rack-mounted CompactDAQ and CompactRIO installations.
Model options with or without a display cutout.
Opening rear panel and removable top and bottom panels provide installation access.

Verified specifications

Technical data

Verified product specifications.

Nominal rack format	19 in
Dimensions, manufacturer-listed order	481.08 × 513.37 × 221.23 mm
Weight	12.27 kg
Ingress protection	IP30
Operating temperature, specified configuration only	-40 to 55; assumes cRIO-9068, eight C Series modules and NI PS-15. Verify other configurations. °C
Rear-panel I/O connections	Nine eight-position barrier strip connectors

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Supported system families; model-specific mounting verification required

NI 9919

19-inch rack-mount enclosure accessory

Compatibility

NI's CompactDAQ mounting guide lists the NI 9919 for cDAQ-9174, cDAQ-9178, cDAQ-9185, cDAQ-9187 and cDAQ-9189, among other models. Consult the model-specific table for mounting accessories.

Verify chassis fit and enclosure variant before installation. Follow NI's rack-installation and protective-earth requirements.

Manuals & software
