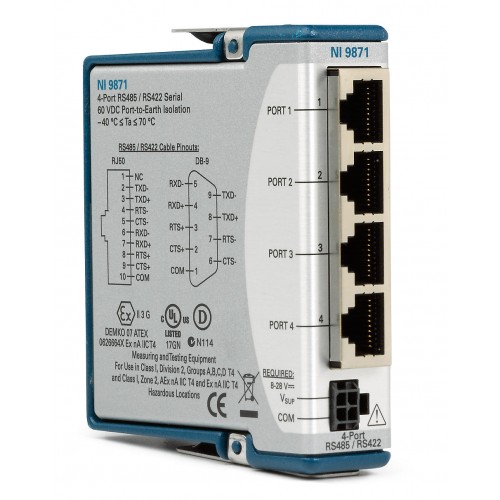

NI-9871
NI-9871 additional viewNI-9871 additional viewNI-9871 additional viewNI-9871 additional viewNI-9871 additional view
6 images: additional views below.Click to enlarge
NI (National Instruments) · CompactRIO

NI-9871

The NI-9871 is a four-port RS422/RS485 C Series serial interface module for CompactRIO. It provides four serial channels with RJ50 front connections and a maximum baud rate of 3.68 Mbits/s.

ManufacturerNI (National Instruments)
ModelNI-9871
Part Number779892-01 · 779892-03
Product Type4-Port, RS485/RS422 C Series Serial Interface Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9871

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Supported Serial ProtocolsRS422, RS485
Supported Hardware PlatformCompactRIO
Maximum Baud Rate3.68 Mbits/s
Operating Temperature Range-40 °C to 70 °C
Front Connection TypeRJ50
Isolation TypePort-to-earth ground
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9871 provides four RS422/RS485 serial channels in a C Series module for CompactRIO. Direct FPGA access to the serial ports supports flexible communication with serial devices.

Each port has an individual buffer, and the module supports standard start-bit, stop-bit and handshaking settings. The enclosed module uses RJ50 front connections and has a specified operating temperature range of -40 °C to 70 °C.

  • Four serial channels supporting RS422 and RS485 protocols.
  • Maximum baud rate of 3.68 Mbits/s.
  • Direct FPGA access to the serial ports, with individual buffers on every port.
  • Supports standard start-bit, stop-bit and handshaking settings.
  • RJ50 front connections with port-to-earth ground isolation.
  • Enclosed design with an operating temperature range of -40 °C to 70 °C.
Verified specifications

Technical data

Verified product specifications.

Supported Serial ProtocolsRS422, RS485
EnclosedYes
Supported Hardware PlatformCompactRIO
Maximum Baud Rate3.68 Mbits/s
Operating Temperature Range-40 °C to 70 °C
Front Connection TypeRJ50
Isolation TypePort-to-earth ground
Number of Serial Channels4
NI part numbers779892-01, 779892-03, 779892-02
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

CompactRIO

Supported Hardware Platform

NI-9871

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many serial channels does the NI-9871 provide?

The NI-9871 provides four serial channels supporting RS422 and RS485.

What is the maximum baud rate of the NI-9871?

The specified maximum baud rate is 3.68 Mbits/s.

What front connections does the NI-9871 use?

The module uses RJ50 front connections.

Which hardware platform is listed for the NI-9871?

CompactRIO is the listed hardware platform. Confirm support for your particular controller, chassis and software configuration before integration.

What is the operating temperature range?

The specified operating temperature range is -40 °C to 70 °C.
