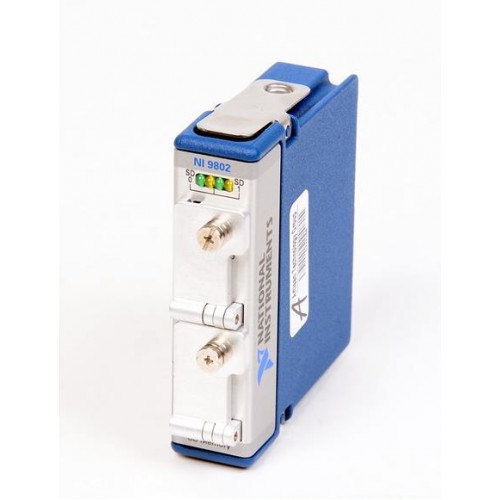

The NI 9802 is a C Series memory module that adds removable, solid-state, nonvolatile SD storage to CompactRIO data-logging applications.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The NI 9802 provides storage expansion rather than measurement inputs. Its removable SD media support CompactRIO logging applications, while open media bay detection helps protect stored data.
Software selection is important for system maintenance: NI explicitly states that the January 2019 CompactRIO Device Drivers release ends support for this module.
Verified product specifications.
| SD card slots | 2 |
|---|---|
| Maximum storage per SD card | 2 GB |
| Read/write transfer rate | 2, typical; one card at a time MB/s |
| Supported file system | FAT16 only |
| Operating temperature | -40 to 70 °C |
| Maximum active power from chassis | 400 mW |
| Weight without SD cards | 147 g |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Data-logging platform
C Series removable SD storage module
The manual specifies CompactRIO reconfigurable chassis and Single-Board RIO devices.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Use NI-approved SD cards, up to 2 GB each, formatted as FAT16.
Do not open its door or remove it while its yellow Busy LED is lit or flashing.
No. NI states that this release ends support for the NI 9802 C Series Memory Module.
