NI (National Instruments) · C Series

NI-9775

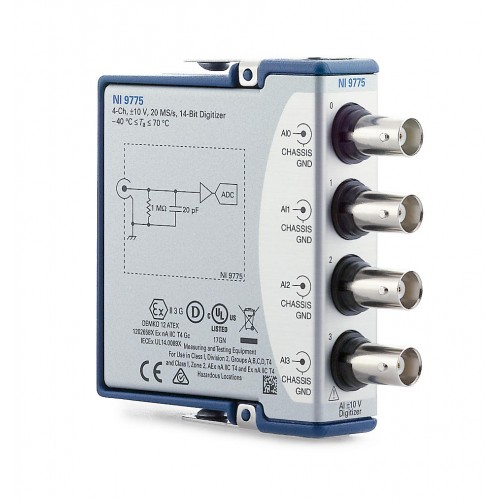

The NI-9775 is a 4-channel, 14-bit C Series digitizer module with ±10 V analog inputs and a maximum sample rate of 20 MS/s/ch. It provides simultaneous sampling through BNC front connections.

ManufacturerNI (National Instruments)

ModelNI-9775

Part Number784539-01

Product Type±10 V, Up to 20 MS/s/ch, 14-Bit, 4-Channel C Series Digitizer Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9775

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectionC Series

Max Single-Ended Analog Input Channels4

Analog Input Resolution14 bits

Maximum Sample Rate20 MS/s/ch

Analog Input Voltage Range-10 V to 10 V

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9775 provides four referenced single-ended analog inputs with simultaneous sampling, 14-bit resolution and a -10 V to 10 V input range. This C Series digitizer uses BNC front connections and has no differential analog input channels or analog input isolation.

The module supports finite-sample measurements up to 20 MS/s/ch, continuous measurement up to 4 MS/s, and waveform streaming at a lower sample rate. A built-in analog reference trigger supports capture of high-speed phenomena.

Four single-ended analog input channels with simultaneous sampling.
14-bit analog input resolution.
Maximum sample rate of 20 MS/s/ch for finite-sample measurements.
±10 V analog input range with BNC front connections.
Built-in analog reference trigger.
Supports waveform streaming at a lower sample rate.

Verified specifications

Technical data

Verified product specifications.

Bus Connection	C Series
Maximum Number of Single-Ended Analog Input Channels	4
Analog Input Resolution	14 bits
Maximum Sample Rate	20 MS/s/ch
Analog Input Voltage Range	-10 V to 10 V
Analog Input Isolation	None
Simultaneous Sampling	Yes
Front Connection Type	BNC
NI part numbers	784539-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

C Series

Bus Connection

NI-9775

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the part number for the NI-9775?

The NI part number recorded for this model is 784539-01.

How many analog input channels does the NI-9775 have?

It has four single-ended analog input channels with simultaneous sampling. It has no differential analog input channels.

What input voltage range and resolution does it provide?

The NI-9775 provides a -10 V to 10 V input range and 14-bit analog input resolution.

Is 20 MS/s/ch the continuous measurement rate?

No. The maximum finite-sample measurement rate is 20 MS/s/ch. Continuous measurement is supported up to 4 MS/s, with waveform streaming supported at a lower sample rate.

Does the NI-9775 provide isolated analog inputs?

No. The recorded specification lists no analog input isolation.
