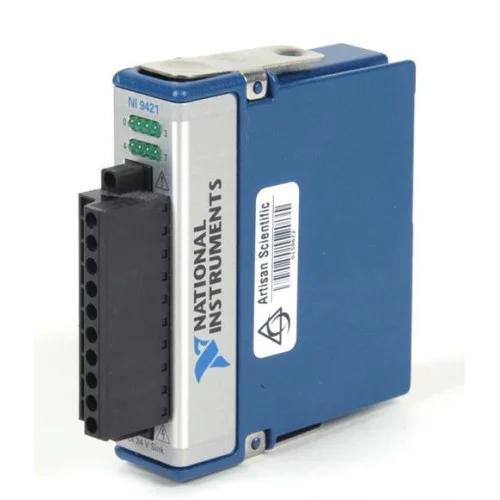

National Instruments NI-9421 8-channel sinking digital input module

1 image: Click to enlarge

National Instruments · CompactDAQ / CompactRIO

NI-9421

The NI-9421 is an 8-channel C Series sinking digital input module for industrial 24 V signals, with a maximum input delay of 100 µs. Connector and isolation specifications depend on the hardware variant.

ManufacturerNational Instruments

ModelNI-9421

Product Type8-channel sinking digital input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9421

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Digital inputs8 sinking input channels

Logic levels12 V and 24 V

Input delay100 µs maximum

PlatformNI C Series for CompactDAQ and CompactRIO

Channel indicationIndividual input-state LEDs

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9421 connects industrial switches, transducers and other digital devices to a modular NI measurement system. Its channels are sinking inputs rather than digital outputs or bidirectional I/O.

NI offers screw-terminal, spring-terminal and D-Sub versions. Their continuous channel-to-earth isolation ratings differ, so the module label and connector must be checked before selecting wiring accessories or applying safety limits.

Eight input-only channels with sinking current direction.
Supports industrial 12 V and 24 V digital logic levels.
An LED on each channel indicates its input state.
Channel-to-earth isolation, with the rating determined by connector variant.

Verified specifications

Technical data

Verified product specifications.

Digital input channels	8 channels
Input type	Sinking
Maximum input delay	100 µs
OFF-state input voltage	≤5 V
ON-state input voltage	11 to 30 V
Channel-to-COM safety voltage	30 maximum V
Channel-to-channel isolation	None
Continuous channel-to-earth isolation by variant	D-Sub: 60 VDC, CAT I; screw/spring terminal: 250 Vrms, CAT II
Connector options	25-pin D-Sub; 10-position screw terminal; 10-position spring terminal

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Host chassis platforms

NI C Series

Modular I/O family

NI-9421

Sinking digital input module

Confirm the module part number and connector before choosing accessories or applying the variant-specific isolation rating.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9421 Official Product PageProduct Page · ni.com

Open →

NI 9421 DatasheetDatasheet · download.ni.com

Open →

NI-9421 Dimensional DrawingsDimensional Drawings And CAD Models · ni.com

Open →

C Series Hardware and LabVIEW CompatibilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the NI-9421 drive digital outputs?

No. It has eight digital input-only channels, with no digital output or bidirectional channels.

Is part number 779002-01 the D-Sub version?

No. NI identifies 779002-01 as the screw-terminal version. The non-conformal-coated D-Sub version is 779136-01. This catalog record has conflicting variant information, so its exact connector requires confirmation.

Are the digital inputs isolated from one another?

No. The datasheet specifies no channel-to-channel isolation. Channel-to-earth isolation is provided, with different continuous ratings for D-Sub and terminal versions.
