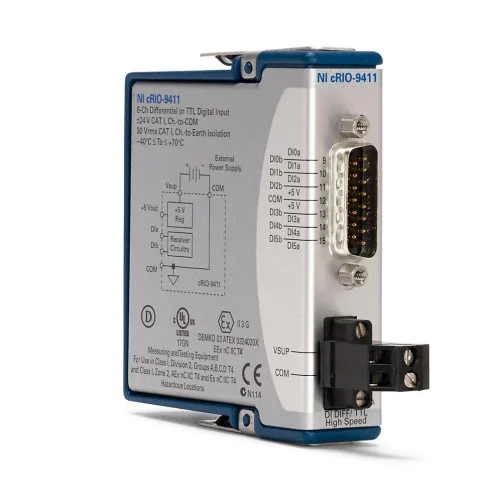

National Instruments NI-9411 C Series digital input module

1 image: Click to enlarge

National Instruments · CompactDAQ

NI-9411

The NI-9411 is a six-channel C Series digital input module with differential or single-ended inputs for industrial signals. It supports correlated measurements, triggering and synchronization in CompactDAQ systems.

ManufacturerNational Instruments

ModelNI-9411

Part Number779005-02

Product TypeC Series digital input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9411

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Digital inputs6 channels

Input configurationDifferential or single-ended

Input delay500 ns maximum

Signal connection15-pin D-SUB

Isolation60 VDC continuous channel-to-earth; no channel-to-channel isolation

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9411 interfaces with industrial switches, transducers and digital devices. Its correlated digital functionality supports measurement timing, triggering and synchronization when installed in a CompactDAQ chassis.

Differential and single-ended operation are selected by wiring rather than a software setting. Differential signals connect to both DIa and DIb; single-ended signals use the positive input with the negative input left floating, following NI's connection guidance.

Six digital input channels supporting differential and single-ended signaling.
Maximum input propagation delay of 500 ns.
Supports CompactDAQ counter applications.
Accepts differential TTL encoder signals when the signal pairs are fully wired.

Verified specifications

Technical data

Verified product specifications.

Digital input channels	6 channels
Input type	Differential or single-ended
Input delay time	500 maximum ns
Single-ended input high range	2 to 24 V
Single-ended input low range	0 to 0.8 V
Differential input high range	0.3 to 24 V
Differential input low range	-24 to -0.3 V
Differential common-mode voltage	-7 to 12 V
Input impedance	8.4 kΩ
Channel-to-earth continuous isolation	30 Vrms / 42.4 Vpk / 60 VDC
Channel-to-channel isolation	None
Operating temperature	-40 to 70 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ

Modular acquisition platform

NI-9411

C Series digital input module

Timing integration

Correlated measurements, triggering and synchronization in CompactDAQ.

Check chassis support and signal thresholds before integration. Inputs are not isolated from one another; follow NI's CAT I wiring limits.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9411 Product PageProduct Page · ni.com

Open →

NI 9411 DatasheetDatasheet · download.ni.com

Open →

NI 9411 Getting Started GuideWiring And Installation Guide · download.ni.com

Open →

NI-9411 Dimensional DrawingsDrawings And CAD Models · ni.com

Open →

Using the NI 9411 Inputs as Differential or Single-EndedTechnical resource

Open →

Differential TTL Encoder Input GuidanceTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How is differential or single-ended mode selected?

The mode is determined by wiring, not software configuration. Differential operation uses DIa and DIb. For single-ended operation, connect the positive input and leave the negative input floating as described by NI.

Can the NI-9411 accept differential TTL encoder signals?

Yes. NI identifies the NI-9411 as a differential TTL input option and instructs users to fully connect the encoder's differential signal pairs.

Are the input channels individually isolated?

No. There is no channel-to-channel isolation. The continuous channel-to-earth isolation rating is 30 Vrms, 42.4 Vpk or 60 VDC.
