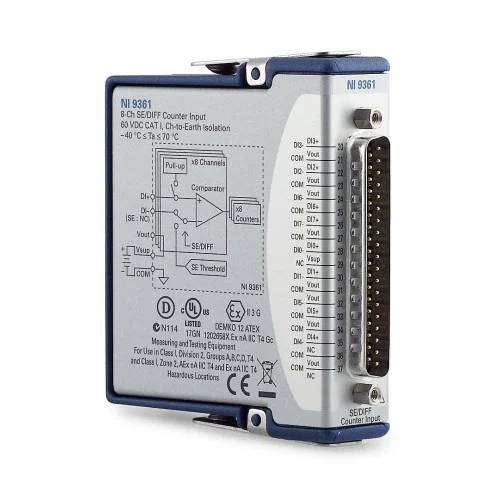

NI-9361

The NI-9361 is a 32-bit, 8-channel C Series counter input module with differential or single-ended inputs. It provides eight counters and digital input voltage ranges of 0 V to 5 V and 0 V to 24 V.

ManufacturerNI (National Instruments)

ModelNI-9361

Part Number783407-01 · 783407-02

Product Type32-Bit, 8-Channel C Series Counter Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9361

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Number of Counters/Timers8

Digital Input Voltage Range0 V to 5 V, 0 V to 24 V

Front End Connection37-Pin, Male D-SUB

Supported Hardware PlatformC Series

Bus ConnectionC Series

Front Connection TypeD-SUB

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9361 provides counter input measurement in the NI C Series platform. Its 37-pin male D-SUB connector carries the input connections, and the module provides 60 VDC channel-to-earth-ground digital I/O isolation.

Each channel can read a single pulse train, or channels can be combined to read up to four incremental encoders. The counters support encoder position and velocity measurements and synchronization with other analog, digital, and counter measurements in the chassis.

Eight counters/timers for counter input measurements.
Differential or single-ended input operation.
Internal switchable 1 kΩ pull-up resistor for direct connection of sensors with open-collector or push-pull outputs.
Combined-channel operation supports measurement of up to four incremental encoders.
Digital input voltage ranges of 0 V to 5 V and 0 V to 24 V.
Operating temperature range of -40 °C to 70 °C.

Verified specifications

Technical data

Verified product specifications.

Number of Counters/Timers	8
Digital Input Voltage Range	0 V to 5 V, 0 V to 24 V
Front End Connection	37-Pin, Male D-SUB
Supported Hardware Platform	C Series
Bus Connection	C Series
Front Connection Type	D-SUB
Digital I/O Isolation	60 VDC Ch-Earth Ground Isolation
Operating Temperature Range	-40 °C to 70 °C
NI part numbers	783407-01, 783407-02
