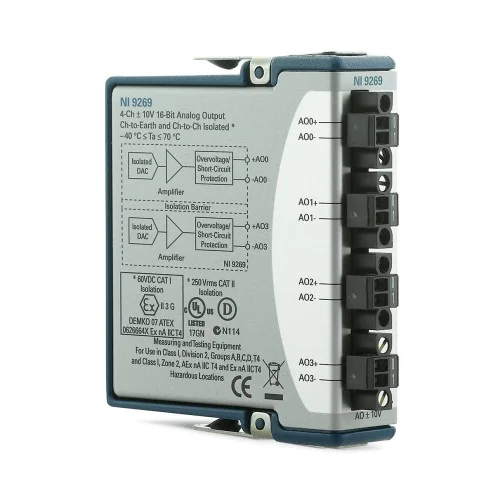

National Instruments NI-9269 Isolated C Series voltage output module
1 image: Click to enlarge
National Instruments · CompactDAQ and CompactRIO

NI-9269

The NI-9269 provides four isolated ±10 V analog outputs with 16-bit resolution and simultaneous updates up to 100 kS/s per channel.

ManufacturerNational Instruments
ModelNI-9269
Part Number781098-02
Product TypeIsolated C Series voltage output module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9269

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Outputs4 voltage output channels
Nominal range±10 V
Resolution16 bits
Update rate100 kS/s/ch simultaneous
Isolation250 Vrms channel-to-channel
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Each output has its own DAC and independent signal path. Channels float relative to earth ground and one another, with overvoltage and short-circuit protection.

The catalog references screw-terminal part number 781098-02. NI identifies this variant as conformal coated; the legacy description says otherwise, so the physical unit's variant should be confirmed.

  • Simultaneous updates across four output channels.
  • Channel-to-channel isolation separates output signal paths.
  • Per-channel overvoltage and short-circuit protection.
Verified specifications

Technical data

Verified product specifications.

Analog output channels4 channels
Nominal output voltage range-10 to +10 V
DAC resolution16 bits
Maximum analog update rate100, simultaneous kS/s/ch
Current drive per channel±10 typical mA
Total current drive across all channels±20 maximum mA
Continuous channel-to-channel isolation250 Vrms
Front connection for 781098-02Screw terminal
Operating temperature-40 to +70 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Host platforms

C Series

Module family and chassis interface

NI-9269

Isolated voltage output module

Confirm the module part number and coating variant before specifying the unit.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9269 Official Product PageProduct Page · ni.com
Open →
NI 9269 DatasheetDatasheet · download.ni.com
Open →
C Series CompactDAQ and CompactRIO Hardware CompatibilityTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
NI-9201View product →
Related model
NI-9205View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the NI-9269 an input or output module?

It is a four-channel analog voltage output module.

What current-drive limits should be considered?

NI specifies ±10 mA typical per channel and ±20 mA maximum across all channels.

Does 781098-02 have conformal coating?

NI lists 781098-02 as conformal coated. This catalog's legacy description conflicts with that identification; confirm the physical unit.
