National Instruments NI-9266 C Series Current Output Module

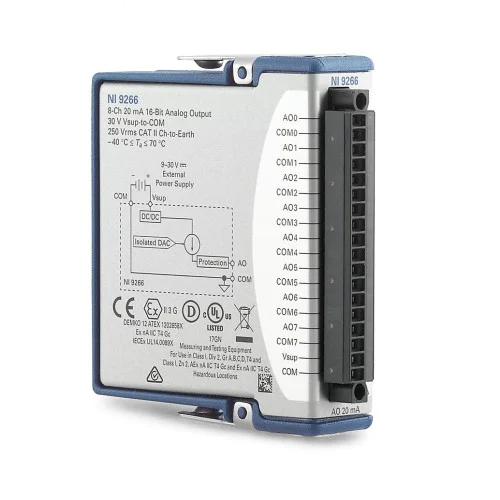

1 image: Click to enlarge
National Instruments · CompactDAQ

NI-9266

The NI-9266 is an eight-channel C Series current output module for controlling industrial current-driven actuators. Part number 785046-01 provides screw-terminal connections, 0–20 mA outputs and a maximum update rate of 24 kS/s per channel.

ManufacturerNational Instruments
ModelNI-9266
Part Number785046-01
Product TypeC Series Current Output Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9266

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog outputs8 channels
Output range0–20 mA
Maximum update rate24 kS/s/ch
Resolution16 bits
ConnectionScrew terminal, part number 785046-01
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This module adds current-generation capability to a modular C Series system. Its eight analog output channels suit industrial actuator interfaces requiring controlled current signals.

An external 9–30 V DC supply powers the connected current loops. Check load requirements and the module's compliance-voltage limits before wiring.

  • Eight simultaneous analog current outputs.
  • Open-loop detection with software-readable channel status.
  • 0.0 mA startup and power-down current.
  • Channel-to-earth isolation on the screw-terminal variant.
Verified specifications

Technical data

Verified product specifications.

Analog output channels8 channels
Output current range0–20 mA
Maximum analog update rate24 kS/s/ch
DAC resolution16 bits
Front connectionScrew terminal
Conformal coatingNo
EnclosedYes
External supply voltage9–30 V DC
Maximum load600 Ω
Maximum compliance voltage12 V DC
Channel-to-earth isolation, screw-terminal variant250 V RMS, CAT II
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ

Supported chassis platform using NI-DAQmx

NI-9266

C Series current output module

Catalog variant

785046-01: screw-terminal, enclosed, without conformal coating.

Verify chassis and driver support for the intended system. Disconnect external loop power before inserting or removing the module.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9266 Product PageProduct Page · ni.com
Open →
NI 9266 DatasheetDatasheet · download.ni.com
Open →
NI 9266 Getting Started GuideGetting Started Guide · download.ni.com
Open →
NI-9266 Dimensional DrawingsDimensional Drawings And CAD Models · ni.com
Open →
NI-DAQmx 20.1 Readme: Supported DevicesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which NI-9266 connection variant does this record describe?

This record identifies part number 785046-01, the enclosed screw-terminal variant without conformal coating.

Does the NI-9266 require an external power supply?

Yes. Connect a 9–30 V DC external supply to Vsup and COM to provide current for connected devices. Only one external supply may be connected to the module.

Is this a current input or current output module?

It is a current output module with eight 0–20 mA analog outputs.
