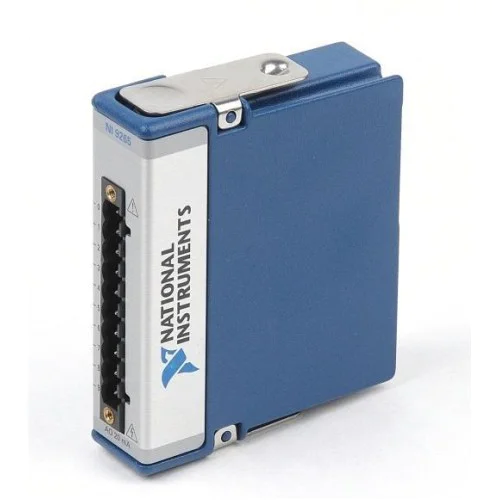

National Instruments NI-9265 C Series Current Output Module
1 image: Click to enlarge
National Instruments · CompactDAQ / CompactRIO

NI-9265

The NI-9265 is a four-channel C Series current output module for controlling current-driven industrial actuators. Connector type must be confirmed because the catalog's terminal description conflicts with its tagged part number.

ManufacturerNational Instruments
ModelNI-9265
Product TypeC Series Current Output Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9265

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Output channels4
Current range0–20 mA
Maximum update rate100 kS/s/ch
Resolution16-bit
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9265 provides current outputs within the NI C Series ecosystem. NI documents support for CompactDAQ and CompactRIO chassis.

The module requires external power and includes open-loop detection. Screw-terminal and spring-terminal versions have distinct part numbers; verify the module label before selecting wiring accessories.

  • Open-loop detection generates a software interrupt.
  • Outputs return to zero at system power-on.
  • Channel-to-earth ground double isolation barrier.
Verified specifications

Technical data

Verified product specifications.

Analog output channels4 channels
Output current range0–20 mA
Maximum analog update rate100 kS/s/ch
DAC resolution16 bits
External supply voltage9–36 VDC
Maximum load600 Ω
Maximum compliance voltage12 VDC
Channel-to-channel isolationNone
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Host platforms

NI-9265

C Series current output module

Compatibility

NI documents the NI-9265 for CompactDAQ and CompactRIO chassis.

Confirm the terminal variant and provide the required external supply before wiring.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9265 Product Page and Variant ComparisonProduct Page · ni.com
Open →
NI 9265 DatasheetDatasheet · download.ni.com
Open →
NI 9265 Electrical Specifications and Wiring RequirementsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI-9265 require external power?

Yes. It requires a 9–36 VDC external supply.

Is part number 783733-01 the screw-terminal version?

No. NI identifies 783733-01 as spring terminal and 779334-01 as the non-conformal-coated screw-terminal version. This catalog item's exact variant needs confirmation.

Are the output channels individually isolated?

No. NI specifies no channel-to-channel isolation.
