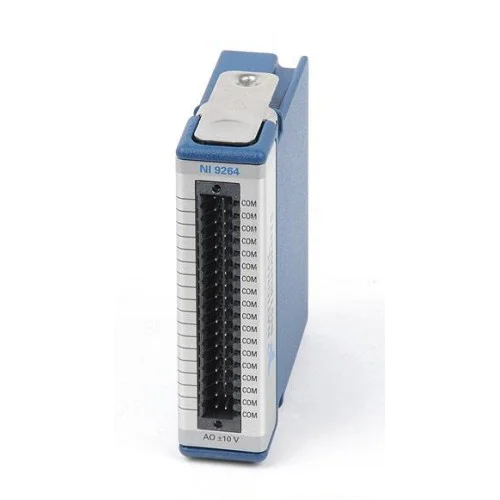

NI-9264

The NI-9264 is a 16-channel C Series analog voltage output module with ±10 V outputs, 16-bit resolution and simultaneous updates at up to 25 kS/s per channel. This catalog record identifies the enclosed, non-conformal-coated D-Sub variant, part number 780927-01.

ManufacturerNational Instruments

ModelNI-9264

Part Number780927-01

Product TypeC Series voltage output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9264

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog outputs16 channels

Nominal output range±10 V

Resolution16 bits

Maximum update rate25 kS/s/ch, simultaneous

ConnectionD-Sub

Current drive±4 mA per channel typical; ±16 mA total maximum

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9264 provides high-density voltage generation for systems requiring multiple analog outputs. A dedicated digital-to-analog converter on every channel supports simultaneous updating while conserving chassis slots.

For the D-Sub version, channel-to-earth isolation is rated at 60 VDC continuous, with no channel-to-channel isolation. Size connected loads against both the per-channel current capability and the shared module current limit.

Dedicated DAC on each output channel.
Simultaneous analog output updating.
Per-channel overvoltage and short-circuit protection.
Enclosed D-Sub variant without conformal coating.

Verified specifications

Technical data

Verified product specifications.

Analog output channels	16 channels
Nominal output voltage range	-10 to +10 V
DAC resolution	16 bits
Maximum analog update rate	25 kS/s/ch
Typical current drive per channel	±4 mA
Maximum current drive, all channels combined	±16 mA
Front connection	D-Sub
Continuous channel-to-earth isolation, D-Sub variant	60 VDC
Channel-to-channel isolation	None
Enclosed	Yes
Conformal coated	No
