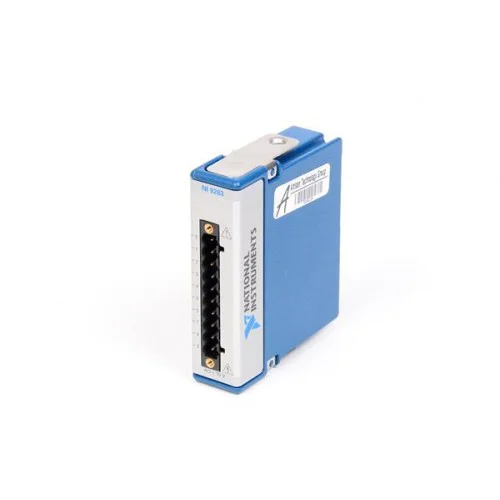

National Instruments NI-9263 C Series voltage output module

1 image: Click to enlarge

National Instruments · CompactDAQ / CompactRIO

NI-9263

The NI-9263 is a four-channel C Series analog voltage output module with a nominal ±10 V range, 16-bit resolution and simultaneous updates up to 100 kS/s per channel.

ManufacturerNational Instruments

ModelNI-9263

Part Number783740-01

Product TypeC Series voltage output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9263

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog outputs4 channels

Nominal output range±10 V

Resolution16 bits

Maximum update rate100 kS/s/ch, simultaneous

Current drive1 mA per channel

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Each output channel has its own digital-to-analog converter, with overvoltage and short-circuit protection. Loads connect between the analog output terminal and COM, the common reference to isolated ground.

NI lists the NI-9263 in its CompactDAQ and CompactRIO compatibility guidance. Select the chassis and software configuration using the official compatibility table rather than assuming all C Series systems support identical operating modes.

The catalog tag identifies part number 783740-01, which NI associates with spring terminals. The legacy description instead states screw terminals. Confirm the physical module label and connector before selecting wiring accessories.

Simultaneously updating analog voltage outputs.
Dedicated DAC on each channel.
Per-channel overvoltage and short-circuit protection.
Channel-to-earth isolation; channels are not isolated from one another.

Verified specifications

Technical data

Verified product specifications.

Analog output channels	4 channels
Nominal output voltage range	-10 to +10 V
DAC resolution	16 bits
Maximum analog update rate	100, simultaneous kS/s/ch
Maximum current drive	1 per channel mA
Output impedance	2 Ω
Continuous channel-to-earth isolation	250 Vrms
Channel-to-channel isolation	None

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

System platforms covered by NI compatibility guidance

C Series

Module family and chassis interface

NI-9263

Analog voltage output module

Confirm the connector variant and load requirements before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9263 Product PageProduct Page · ni.com

Open →

NI 9263 DatasheetDatasheet · download.ni.com

Open →

NI-9263 Getting StartedGetting-started Guide · ni.com

Open →

NI-9263 Dimensional DrawingsDimensional Drawings And CAD · ni.com

Open →

NI-9263 Output Voltage and Load Resistance TroubleshootingTechnical resource

Open →

C Series CompactDAQ and CompactRIO CompatibilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does this catalog item have spring or screw terminals?

The supplied tag lists 783740-01, which NI identifies as the spring-terminal version. The legacy description says screw terminal. The actual connector remains unconfirmed; check the module label and connector.

Are the output channels individually isolated?

No. The datasheet specifies channel-to-earth isolation but no channel-to-channel isolation.
