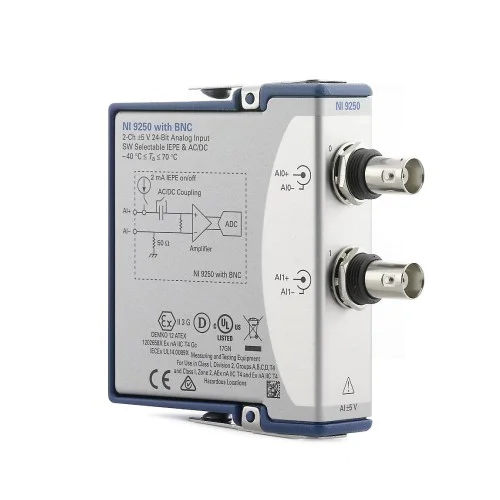

NI-9250

The NI-9250, part number 783827-01, is a 2-channel C Series sound and vibration input module with simultaneous sampling, a ±5 V input range and a maximum sample rate of 102.4 kS/s per channel.

ManufacturerNI (National Instruments)

ModelNI-9250

Part Number783827-01

Product Type2-Channel, 102.4 kS/s/ch Simultaneous, ±5 V, C Series Sound and Vibration Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9250

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Max Differential Analog Input Channels2

IEPE Excitation2 mA

Analog Input Voltage Range-5 V to 5 V

Maximum Sample Rate102.4 kS/s/ch

Front Connection TypeBNC

Analog Input IsolationNone

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9250 measures voltage signals from IEPE and non-IEPE sensors, including accelerometers and microphones. It supports smart TEDS sensors and provides 2 mA IEPE excitation.

This C Series module combines BNC front connections and AC/DC input coupling with simultaneous channel measurement. Built-in anti-aliasing filters adjust to the sample rate.

Two analog input channels with simultaneous sampling.
±5 V input range and up to 102.4 kS/s per channel.
24-bit resolution and 108 dBFS DSA dynamic range.
BNC front connections and a C Series bus interface.
2 mA IEPE excitation for supported sensor measurements.
AC/DC input coupling with a listed highpass filter cut-off frequency of 0.43 Hz.
Operating temperature range of -40 °C to 70 °C.

Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels	2
Conformal Coated	No
IEPE Excitation	2 mA
Analog Input Voltage Range	-5 V to 5 V
Enclosed	Yes
Maximum Sample Rate	102.4 kS/s/ch
Front Connection Type	BNC
Analog Input Isolation	None
Supported Hardware Platform	C Series
Number of Analog Input Channels	2
Simultaneous Sampling	Yes
Operating Temperature Range	-40 °C to 70 °C
Bus Connection	C Series
Analog Input Coupling	AC/DC
DSA Dynamic Range	108 dBFS
Electrical Signal Measured	Voltage
Highpass Filter Cut-Off Frequency	0.43 Hz
Number of Gain Settings	1
Supported Sensor Type	IEPE, Accelerometer, Microphone
NI part numbers	783827-01
