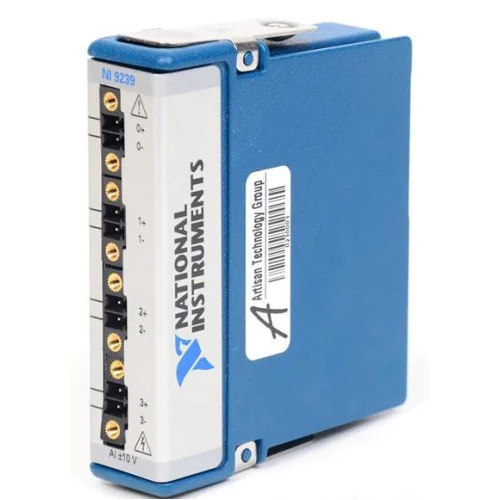

National Instruments NI-9239 C Series Voltage Input Module
1 image: Click to enlarge
National Instruments · CompactDAQ and CompactRIO

NI-9239

The NI-9239 provides four differential ±10 V analog inputs with 24-bit resolution and simultaneous sampling at up to 50 kS/s per channel. It is a C Series module for CompactDAQ and CompactRIO systems.

ManufacturerNational Instruments
ModelNI-9239
Product TypeC Series Voltage Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9239

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Inputs4 differential channels
Voltage range±10 V
Resolution24-bit
SamplingSimultaneous, up to 50 kS/s/ch
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9239 performs isolated differential voltage acquisition. Its floating input front end helps eliminate measurement errors caused by ground loops.

Connector and isolation specifications vary by part number. The supplied catalog tag and legacy connector description conflict, so the exact hardware variant must be confirmed before choosing wiring or applying isolation limits.

  • Independent signal paths and ADCs support simultaneous acquisition.
  • Analog and digital anti-alias filtering.
  • Channel-to-channel isolation with variant-dependent ratings.
Verified specifications

Technical data

Verified product specifications.

Differential analog input channels4 channels
Nominal input range-10 to +10 V
ADC resolution24 bits
Maximum sampling rate with internal timebase50 kS/s/ch
Sampling modeSimultaneous
Input couplingDC
Input impedance1 MΩ
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

System platforms

NI-9239

C Series voltage acquisition module

Compatibility

NI documents use in CompactDAQ and CompactRIO systems; this does not establish compatibility with every chassis or software configuration.

Confirm the module part number, connector style, and applicable isolation limits before installation.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9239 Manufacturer Product PageProduct Page · ni.com
Open →
NI 9239 DatasheetDatasheet · download.ni.com
Open →
NI-9239 Dimensional DrawingsDimensional Drawings And CAD Models · ni.com
Open →
NI-9239 Product CertificationsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI-9239 sample all four channels simultaneously?

Yes. Each channel has its own ADC and independent signal path.

Is this catalog item the BNC version?

The variant is not confirmed. NI identifies 780181-01 as BNC and 782402-01 as a conformal-coated screw-terminal variant. The catalog combines a BNC description with the 782402-01 tag.
