National Instruments NI-9237 C Series Strain/Bridge Input Module

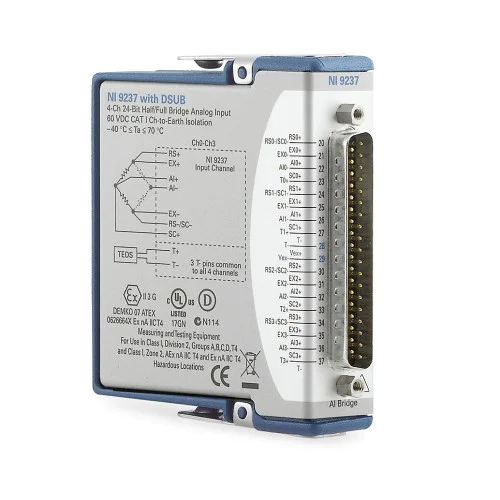

1 image: Click to enlarge

National Instruments · CompactDAQ / CompactRIO

NI-9237

The NI-9237 acquires four bridge-sensor channels simultaneously at up to 50 kS/s/channel with 24-bit conversion. It integrates bridge signal conditioning for CompactDAQ and CompactRIO systems.

ManufacturerNational Instruments

ModelNI-9237

Product TypeC Series Strain/Bridge Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9237

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Inputs4 bridge analog input channels

Sampling50 kS/s/channel, simultaneous

Resolution24 bit

Input range±25 mV/V

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9237 supports strain and load measurements from bridge-based sensors. Its remote sensing helps compensate for excitation-lead resistance.

The catalog identifies a D-Sub connection, but its coating information conflicts with the tagged part number. NI identifies 780264-02 as conformal-coated and 780264-01 as non-coated; confirm the module label before selecting variant-specific wiring.

Simultaneous acquisition across all four channels.
Programmable internal excitation.
Half- and full-bridge support; quarter bridges require external completion.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	4 channels
ADC resolution	24 bit
Typical input range	-25 to +25 mV/V
Maximum sample rate using internal timebase	50 kS/s/channel
Internal excitation settings	2.5, 3.3, 5, 10 V
Maximum total internal excitation power	150 mW

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Host platforms

NI-9237

C Series bridge input module

D-Sub connectivity

NI lists the NI-9923 front-mount terminal block for both D-Sub part numbers, 780264-01 and 780264-02.

Confirm the connector and part number before choosing terminal blocks or bridge-completion accessories.
