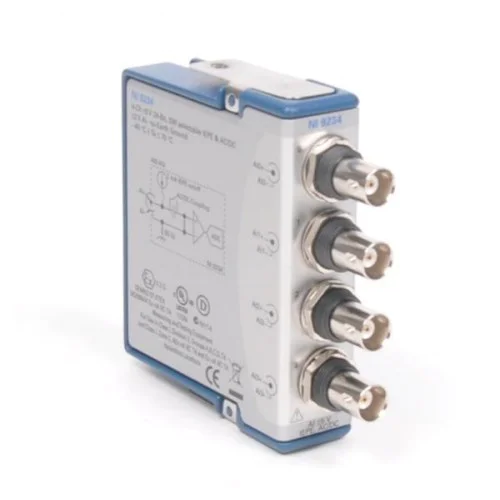

National Instruments NI-9234 C Series Sound and Vibration Input Module
1 image: Click to enlarge
National Instruments · CompactDAQ and CompactRIO

NI-9234

The NI-9234 is a four-channel C Series sound and vibration input module with simultaneous 24-bit acquisition at up to 51.2 kS/s per channel. It provides a ±5 V input range, selectable AC/DC coupling, and IEPE signal conditioning.

ManufacturerNational Instruments
ModelNI-9234
Part Number779680-01
Product TypeC Series Sound and Vibration Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9234

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs4 simultaneous channels
Resolution24-bit
Sample rateUp to 51.2 kS/s/channel with internal timebase
Input range±5 V
Sensor excitationSelectable 2 mA IEPE
Connections4 BNC inputs
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9234 fits CompactDAQ and CompactRIO systems for dynamic signal acquisition. Its simultaneous inputs support measurements from microphones and accelerometers, with onboard conditioning for IEPE sensors.

  • Simultaneous acquisition across all four analog input channels.
  • 24-bit delta-sigma analog-to-digital conversion.
  • Software-selectable AC/DC input coupling.
  • Built-in anti-aliasing filters automatically adjust to the sample rate.
  • Supports smart TEDS sensors.
Verified specifications

Technical data

Verified product specifications.

Analog input channels4 differential
ADC resolution24 bits
Sampling modeSimultaneous
Maximum sample rate, internal timebase51.2 kS/s/channel
Nominal input range-5 to +5 V
Input couplingAC/DC, software-selectable
IEPE excitation current2.0 minimum; 2.1 typical; software-selectable on/off mA
Front connections4 BNC
IsolationNone, channel-to-channel or channel-to-earth ground
Conformal coating, 779680-01No
Enclosed, 779680-01Yes
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Host system platforms

C Series

Modular I/O family

NI-9234

Sound and vibration input module

Inputs are non-isolated. Check sensor bias, common-mode voltage, and IEPE compliance limits before connection.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9234 Product PageManufacturer Product Page · ni.com
Open →
NI-9234 SpecificationsSpecifications · ni.com
Open →
NI 9234 DatasheetPDF Datasheet · download.ni.com
Open →
NI-9234 Dimensional DrawingsDimensional Drawings And CAD Models · ni.com
Open →
C Series Module and CompactDAQ or CompactRIO Hardware Compatibility with LabVIEWTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the NI-9234 measure sensors that do not require IEPE excitation?

Yes. It supports IEPE and non-IEPE sensors, with selectable AC/DC coupling and switchable IEPE conditioning.

Are the NI-9234 inputs electrically isolated?

No. There is no channel-to-channel or channel-to-earth-ground isolation.
