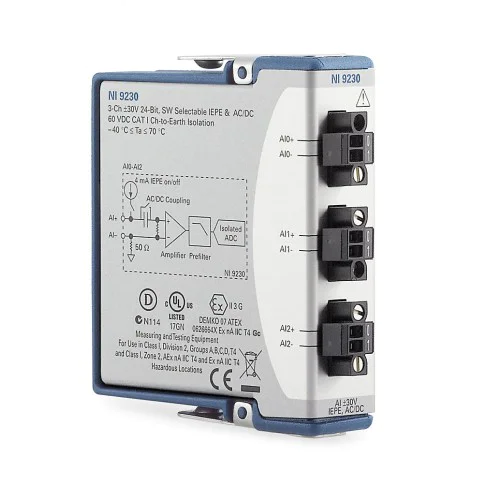

NI (National Instruments) NI-9230 3-Channel, 12.8 kS/s/channel, ±30 V, C Series Sound and Vibration Input Module

1 image: Click to enlarge

NI (National Instruments) · C Series

NI-9230

The NI-9230 is a 3-channel C Series sound and vibration input module with 24-bit inputs, a maximum sample rate of 12.8 kS/s/channel and a ±30 V input range. It provides simultaneous sampling and 4 mA IEPE excitation for supported sensors.

ManufacturerNI (National Instruments)

ModelNI-9230

Part Number784396-01 · 783824-01

Product Type3-Channel, 12.8 kS/s/channel, ±30 V, C Series Sound and Vibration Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9230

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Max Differential Analog Input Channels3

IEPE Excitation4 mA

Analog Input Voltage Range-30 V to 30 V

Maximum Sample Rate12.8 kS/s/ch

Analog Input Isolation60 VDC Ch-Earth Ground Isolation

Supported Hardware PlatformC Series

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9230 measures voltage signals from IEPE and non-IEPE sensors, including accelerometers, tachometers, proximity probes and microphones. It also supports smart TEDS sensors.

Its three channels measure simultaneously. Integrated signal conditioning includes software-selectable AC/DC coupling, IEPE excitation, IEPE open/short detection and anti-aliasing filters that adjust to the sample rate.

Three differential analog inputs with simultaneous sampling.
24-bit resolution and a maximum sample rate of 12.8 kS/s/channel.
±30 V input range with 60 VDC channel-to-earth-ground isolation.
4 mA IEPE excitation with integrated IEPE signal conditioning and open/short detection.
Software-selectable AC/DC coupling and sample-rate-dependent anti-aliasing filters.
Enclosed C Series module with an operating temperature range of -40 °C to 70 °C.

Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels	3
IEPE Excitation	4 mA
Analog Input Voltage Range	-30 V to 30 V
Enclosed	Yes
Maximum Sample Rate	12.8 kS/s/ch
Analog Input Isolation	60 VDC Ch-Earth Ground Isolation
Supported Hardware Platform	C Series
Number of Analog Input Channels	3
Simultaneous Sampling	Yes
Operating Temperature Range	-40 °C to 70 °C
Bus Connection	C Series
Analog Input Coupling	AC/DC
DSA Dynamic Range	102 dBFS
Electrical Signal Measured	Voltage
Highpass Filter Cut-Off Frequency	0.1 Hz
Number of Gain Settings	1
Supported Sensor Type	IEPE, Accelerometer, Microphone
NI part numbers	784396-01, 783824-01, 783824-02, 789128-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

C Series

Supported Hardware Platform

NI-9230

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many input channels does the NI-9230 have?

The NI-9230 has three differential analog input channels that measure simultaneously.

What are the input range and maximum sample rate?

The input range is -30 V to 30 V, and the maximum sample rate is 12.8 kS/s per channel.

What signal conditioning does the NI-9230 provide?

It provides software-selectable AC/DC coupling, 4 mA IEPE excitation, IEPE open/short detection and built-in anti-aliasing filters that adjust to the sample rate.

Can the NI-9230 measure non-IEPE sensors?

Yes. The NI-9230 measures voltage signals from both IEPE and non-IEPE sensors, including accelerometers, tachometers, proximity probes and microphones. Sensor output and excitation requirements must match the module's specifications.
