National Instruments NI-9222 C Series Voltage Input Module

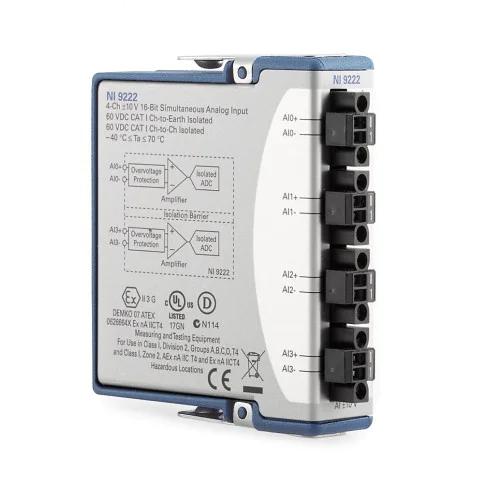

1 image: Click to enlarge

National Instruments · CompactDAQ / CompactRIO

NI-9222

The NI-9222 is a four-channel differential voltage input module with 16-bit resolution and simultaneous sampling at up to 500 kS/s per channel. Its nominal input range is ±10 V.

ManufacturerNational Instruments

ModelNI-9222

Part Number781397-01

Product TypeC Series Voltage Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9222

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Input channels4 differential

Nominal voltage range±10 V

Maximum sampling rate500 kS/s/channel, simultaneous

ADC resolution16 bits

Continuous isolation60 V DC, channel-to-channel and channel-to-earth, Measurement Category I

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Each NI-9222 input has an independent signal path and ADC, allowing all four channels to be sampled simultaneously rather than through a shared multiplexed converter.

Sampling limits depend on the acquisition environment: CompactDAQ with NI-DAQmx and CompactRIO FPGA User-Controlled I/O Sampling support 500 kS/s, while CompactRIO FPGA I/O Nodes are limited to 300 kS/s.

Independent ADCs support simultaneous acquisition across all four inputs.
Successive approximation register (SAR) conversion with 16-bit resolution.
Input impedance greater than 1 GΩ.
±30 V input overvoltage protection.

Verified specifications

Technical data

Verified product specifications.

Differential analog input channels	4 channels
Nominal input voltage range	-10 to +10 V
ADC resolution	16 bits
Maximum sample rate	500 per channel; CompactDAQ NI-DAQmx or CompactRIO FPGA User-Controlled I/O Sampling kS/s
Simultaneous sampling	Yes
Continuous isolation	60; channel-to-channel and channel-to-earth, Measurement Category I V DC
Operating temperature	-40 to +70 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Acquisition environments documented for this module

NI-9222

C Series differential voltage acquisition module

CompactDAQ acquisition

NI-DAQmx: maximum 500 kS/s per channel.

Confirm the unit's connector and part number before selecting wiring accessories; also check the intended chassis and software configuration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9222 Product PageProduct Page · ni.com

Open →

NI-9222 SpecificationsSpecifications · ni.com

Open →

NI 9222 Getting Started GuideGetting-started Guide · download.ni.com

Open →

NI-9222 Dimensional DrawingsDrawings And CAD Resources · ni.com

Open →

C Series Hardware and LabVIEW Compatibility MatrixTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI-9222 sample all channels simultaneously?

Yes. Each input has its own ADC and independent signal path.

Is this catalog unit the BNC version?

The connector is not confirmed. The legacy description says BNC, but the catalog tag identifies 781397-01, which NI lists as the screw-terminal version. Verify the unit label and connector before choosing accessories.
