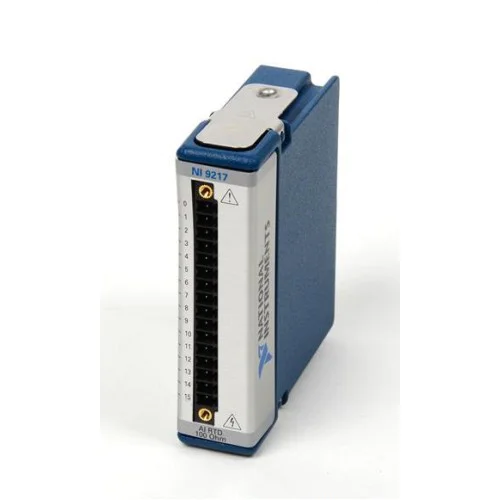

National Instruments NI-9217 RTD temperature input module
1 image: Click to enlarge
National Instruments · CompactDAQ and CompactRIO

NI-9217

The NI-9217 is a four-channel C Series temperature input module for PT100 RTDs. It supports 3- and 4-wire measurements with automatic wiring detection and per-channel current excitation.

ManufacturerNational Instruments
ModelNI-9217
Part Number779592-01
Product TypeRTD temperature input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9217

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels4 RTD inputs
Resolution24 bits
Maximum aggregate rate400 S/s
Resistance range0–400 Ω
ConnectionScrew terminals
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for CompactDAQ and CompactRIO systems, the NI-9217 measures PT100 RTDs using a scanned, delta-sigma conversion architecture.

Selectable high-speed and high-resolution modes let users prioritize conversion speed or noise rejection. Channel-to-earth isolation does not provide channel-to-channel isolation.

  • Automatic detection of 3- or 4-wire RTD connections.
  • Selectable high-sample-rate and high-resolution modes.
  • 1 mA excitation per channel.
  • 50/60 Hz noise rejection in high-resolution mode.
Verified specifications

Technical data

Verified product specifications.

Analog input channels4 channels
ADC resolution24 bits
Sampling architectureScanned, delta-sigma
Maximum aggregate sample rate400 S/s
High-speed conversion time2.5 ms per channel; 10 ms for all channels
High-resolution conversion time200 ms per channel; 800 ms for all channels
Resistance measurement range0–400 Ω
PT100 temperature measurement range-200 to 850 °C
Excitation current1 per channel mA
Channel-to-earth continuous isolation250 Vrms, CAT II, up to 2,000 m altitude
Channel-to-channel isolationNone
Typical temperature accuracy0.15 °C at 25 °C ambient, 4-wire mode, measured range -200 to 150 °C; add 0.1 °C in high-speed mode
Operating temperature-40 to 70 °C
Front connectionScrew terminal
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Host platforms

C Series

Module interface family

NI-9217

PT100 RTD input module

Confirm support for the intended chassis and software configuration before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9217 Product PageProduct Page · ni.com
Open →
NI 9217 DatasheetDatasheet · download.ni.com
Open →
NI 9217 Getting Started GuideGetting Started Guide · download.ni.com
Open →
NI-9217 Dimensional DrawingsDimensional Drawings · ni.com
Open →
NI Guidance on 2-Wire RTD SupportTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which RTD wiring configurations does the NI-9217 support?

It supports 3- and 4-wire PT100 RTDs and automatically detects the connected wiring type.

Does the NI-9217 officially support 2-wire RTDs?

No. NI documents a wiring workaround but does not specify 2-wire measurement accuracy. Uncompensated lead resistance reduces accuracy.

Is 400 S/s the rate for each channel?

No. NI specifies 400 S/s aggregate and describes the module as 100 S/s per channel.
