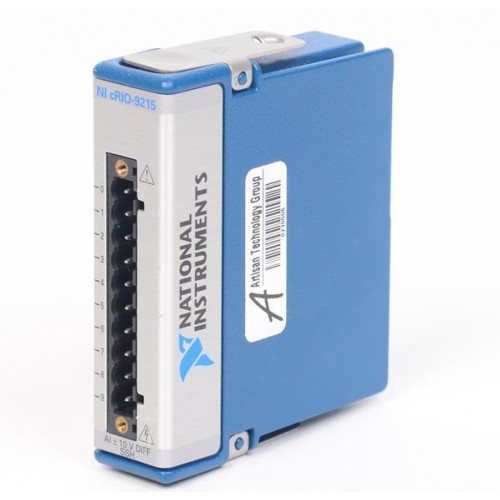

National Instruments NI 9215 / CRIO-9215 C Series Voltage Input Module

1 image: Click to enlarge

National Instruments · CompactDAQ and CompactRIO

NI 9215 / CRIO-9215

The NI 9215 is a four-channel C Series differential voltage input module with a ±10 V range, 16-bit resolution, and simultaneous sampling up to 100 kS/s per channel. It is designed for NI CompactDAQ and CompactRIO systems.

ManufacturerNational Instruments

ModelNI 9215 / CRIO-9215

Product TypeC Series Voltage Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI 9215 / CRIO-9215

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs4 differential channels

Input range±10 V

Resolution16 bits

Maximum sample rate100 kS/s per channel, simultaneous

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI 9215 acquires four voltage signals simultaneously. Each channel has an independent track-and-hold amplifier, allowing measurements to be captured together rather than sequentially multiplexed.

NI documents screw-terminal, spring-terminal, and BNC versions. The connector version for this catalog record is not identified; confirm the module label and front connections before selecting wiring or applying variant-specific safety limits.

Simultaneous acquisition across four differential analog input channels.
Successive approximation register (SAR) analog-to-digital conversion.
Channel-to-earth isolation, with ratings dependent on connector version.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	4 differential
Nominal input range	±10 V
ADC resolution	16 bits
Maximum sample rate per channel	100 kS/s
Sampling mode	Simultaneous
Overvoltage protection	±30 V
Input bandwidth, -3 dB	420 minimum kHz
Channel-to-channel isolation	None
Operating temperature	-40 to 70 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ / CompactRIO

Supported system platforms

NI 9215

C Series voltage input module

Measurement function

Four-channel simultaneous differential voltage acquisition.

Confirm connector variant and chassis/software support before integration. Channel-to-earth isolation does not provide channel-to-channel isolation.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-9215 Product PageManufacturer Product Page · ni.com

Open →

NI-9215 and sbRIO-9215 SpecificationsSpecifications · ni.com

Open →

NI 9215 DatasheetPDF Datasheet · download.ni.com

Open →

C Series Module and CompactDAQ or CompactRIO Hardware Compatibility with LabVIEWTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI 9215 sample all four channels simultaneously?

Yes. It supports simultaneous acquisition at up to 100 kS/s per channel with 16-bit resolution.

Are the input channels isolated from one another?

No. NI specifies no channel-to-channel isolation. Channel-to-earth isolation depends on the connector version.

Which connector does this catalog item have?

The supplied record does not identify the connector. NI documents screw-terminal, spring-terminal, and BNC versions; verify the actual module before choosing connections.
