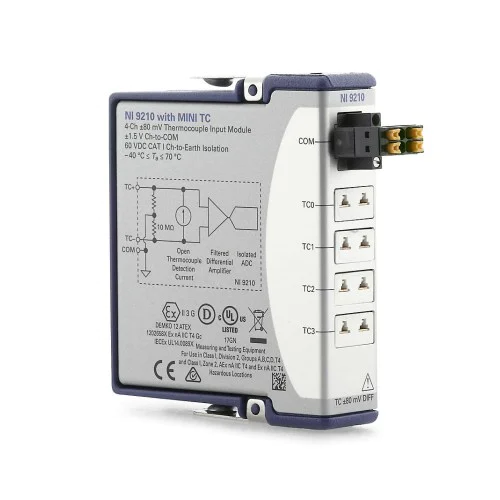

NI (National Instruments) NI-9210 4-Channel, 14 S/s Aggregate, ±80 mV C Series Temperature Input Module
1 image: Click to enlarge
NI (National Instruments) · C Series

NI-9210

The NI-9210 is a four-channel C Series temperature input module for thermocouple measurements. It provides a 14 S/s aggregate sample rate and a ±80 mV analog input range.

ManufacturerNI (National Instruments)
ModelNI-9210
Part Number785043-01 · 784788-01
Product Type4-Channel, 14 S/s Aggregate, ±80 mV C Series Temperature Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9210

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Differential Analog Input Channels4
Supported SensorsAll Standard Thermocouples
Example of Measurement Accuracy0.8 °C
Maximum Sample Rate14 S/s
Supported Hardware PlatformC Series
Analog Input Channels4
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-9210 provides four differential analog inputs for thermocouple temperature measurements in the NI C Series platform. Its 14 S/s aggregate sample rate applies to the module, rather than representing a 14 S/s rate for each channel.

Built-in anti-aliasing filters, open-thermocouple detection and cold-junction compensation support thermocouple measurements. The enclosed module has a specified operating temperature range of −40 °C to +70 °C.

  • Four differential analog input channels for thermocouple measurements.
  • 14 S/s aggregate sampling with a −80 mV to +80 mV input range.
  • Supports all standard thermocouples.
  • Includes anti-aliasing filters, open-thermocouple detection and cold-junction compensation.
  • Enclosed C Series module rated for operation from −40 °C to +70 °C.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels4
Conformal CoatedNo
EnclosedYes
Supported SensorsAll Standard Thermocouples
Example of Measurement Accuracy0.8 °C
Maximum Sample Rate14 S/s
Supported Hardware PlatformC Series
Number of Analog Input Channels4
Analog Input Voltage Range-80 mV to 80 mV
Operating Temperature Range-40 °C to 70 °C
Bus ConnectionC Series
Supported Sensor TypeThermocouple
NI part numbers785043-01, 784788-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

C Series

Supported Hardware Platform

NI-9210

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What type of module is the NI-9210?

The NI-9210 is a four-channel C Series temperature input module with a ±80 mV input range and a 14 S/s aggregate sample rate.

Does the 14 S/s rating apply to each channel?

No. The NI-9210 product designation specifies 14 S/s aggregate for the module, not 14 S/s per channel.

Which sensors does the NI-9210 support?

The NI-9210 supports all standard thermocouples.

What thermocouple measurement features are included?

The module includes anti-aliasing filters, open-thermocouple detection and cold-junction compensation.

What is the operating temperature range?

The specified module operating temperature range is −40 °C to +70 °C. This is the module's environmental operating range, not its thermocouple measurement range.
