National Instruments · PXI Express

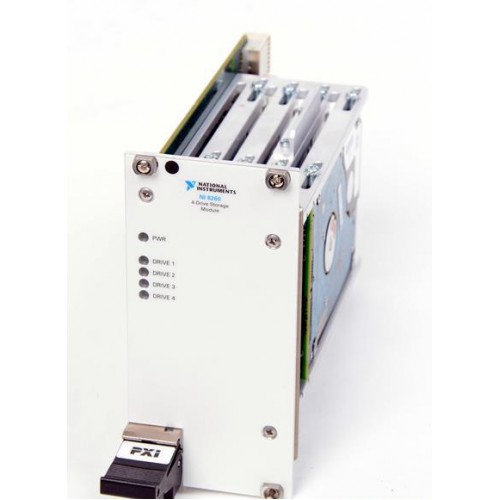

NI 8260

The NI 8260 is an in-chassis storage module for PXI Express data-streaming systems. NI offered hard-disk and solid-state configurations; the installed drive type and capacity must be confirmed for this catalog unit.

ManufacturerNational Instruments

ModelNI 8260

Product TypeIn-chassis data storage module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI 8260

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPXI Express

Module widthThree slots

Drive accommodationUp to four 2.5-inch SATA drives

RAID implementationSoftware RAID; no hardware RAID controller

Windows 10No officially supported NI 8260 driver

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI 8260 provides local disk storage inside a PXI Express system for recording and replaying measurement data. NI described the module for compact, portable systems requiring high-rate data streaming.

The module has no hardware RAID controller. RAID operation requires software RAID, such as Windows software RAID, so the operating system and storage configuration are important integration considerations.

In-chassis storage for PXI Express systems.
Accommodates up to four 2.5-inch SATA drives.
Manufacturer configurations include hard-disk and solid-state storage.
Dedicated NI firmware and driver resources support module setup and control.

Verified specifications

Technical data

Verified product specifications.

Platform	PXI Express
Module width	3 slots
Maximum accommodated drives	4 drives
Drive form factor	2.5 in
Drive interface	Serial ATA (SATA)
Hardware RAID controller	Not present; software RAID required for RAID operation

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Host system platform

NI 8260

In-chassis data storage module

Storage configuration

NI documents separate solid-state and platter-drive assemblies.

Confirm the installed drives, three-slot clearance and operating-system support before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-8260 Firmware and Additional DriversDriver Download And Support Information · ni.com

Open →

NI-8260 Product CertificationsProduct Certifications And Assembly Identification · ni.com

Open →

NI 8260 Compatibility With Windows 10Operating-system Support Article · knowledge.ni.com

Open →

NI 8260 Firmware and Driver DownloadsTechnical resource

Open →

NI Software RAID Guidance for 8260 and 8261 ModulesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the NI 8260 include a hardware RAID controller?

No. NI states that the 8260 uses software RAID, such as Windows software RAID, rather than an onboard hardware RAID controller.

Is the NI 8260 officially supported on Windows 10?

No. NI states that there is no officially supported Windows 10 driver and that Windows 10 operation is an unsupported use case.

Does this record identify an SSD or hard-disk version?

No. NI documents both solid-state and platter-drive versions, but the supplied catalog record does not identify the assembly or installed drives. Confirm the unit label and drive configuration before selecting it.
