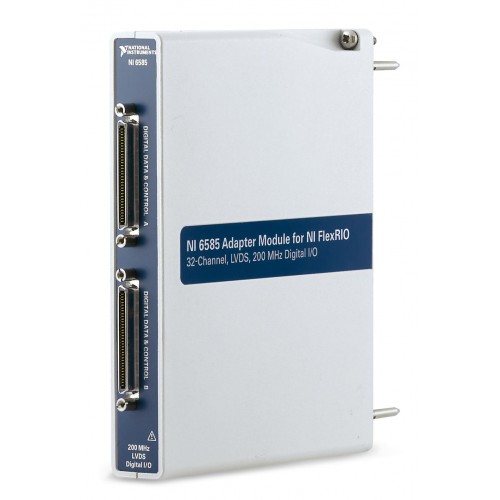

NI (National Instruments) NI-6585 200 MHz, 32 LVDS-Channel Digital I/O Adapter Module for FlexRIO
1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

NI-6585

The NI-6585, part number 781071-01, is a FlexRIO digital I/O adapter with 32 bidirectional LVDS channels and a maximum clock rate of 200 MHz.

ManufacturerNI (National Instruments)
ModelNI-6585
Part Number781071-01
Product Type200 MHz, 32 LVDS-Channel Digital I/O Adapter Module for FlexRIO
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-6585

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels32
Maximum Clock Rate200 MHz
Logic Levels And RangeLVDS, 0.0V - 2.4V
Compatible FPGAVirtex-5
Digital I/O Termination100 Ohm
Maximum Data Rate300 Mbits/s
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-6585 provides real-time digital I/O for standard and customized protocols through differential LVDS signaling. It is a FlexRIO adapter module rather than a standalone digital I/O instrument.

The module combines 32 bidirectional channels with a VHDCI front connection, 100 Ω digital I/O termination, and two external clock inputs. Consult the NI getting-started guide and specifications when planning FPGA integration, signal connections, and timing.

  • 32 bidirectional digital channels using differential LVDS signaling.
  • Maximum clock rate of 200 MHz.
  • 100 Ω digital I/O termination.
  • VHDCI front connection and two external clock inputs.
  • Reconfigurable design with peer-to-peer streaming support.
  • Operating temperature range of 0 °C to 55 °C.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels32
Maximum Clock Rate200 MHz
Logic Levels And RangeLVDS, 0.0V - 2.4V
Compatible FPGAVirtex-5
Digital I/O Termination100 Ohm
Maximum Data Rate300 Mbits/s
Signaling TypeDifferential
ReconfigurableYes
Maximum Digital Update Rate5 ns
Operating Temperature Range0 °C to 55 °C
Digital I/O Logic LevelsLVDS
Front Connection TypeVHDCI
Number of External Clock Inputs2
Supports Peer To Peer StreamingYes
Supported Hardware PlatformComputer-Based Device
Maximum Acquisition Rate300 MB/s
Maximum Generation Rate300 MB/s
Module Width1
EnclosedYes
NI part numbers781071-01
