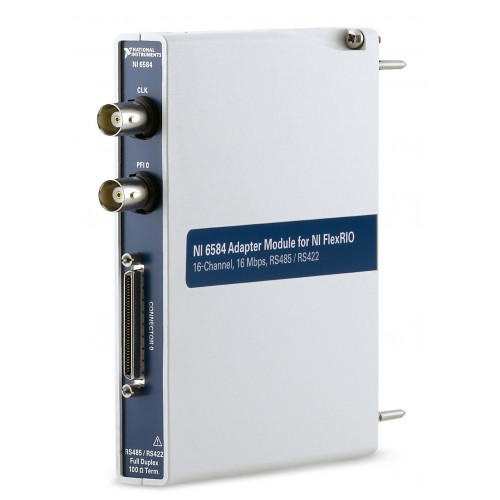

NI (National Instruments) NI-6584 16 Mbit/s, 32-Channel Digital I/O Adapter Module for FlexRIO
1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

NI-6584

The NI-6584 is a digital I/O adapter module for FlexRIO with differential RS-422/RS-485 signaling and a maximum data rate of 16 Mbit/s. NI describes it as a 32-channel module providing 16 RX and TX pairs.

ManufacturerNI (National Instruments)
ModelNI-6584
Part Number781290-01 · 781290-02
Product Type16 Mbit/s, 32-Channel Digital I/O Adapter Module for FlexRIO
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-6584

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels16
Maximum Clock Rate16 MHz
Logic Levels And RangeRS-422/RS-485, 0.1V - 3.0V, 0.0V - 3.3V
Compatible FPGAVirtex-5, Kintex-7
Maximum Data Rate16 Mbits/s
Signaling TypeDifferential
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The NI-6584 provides the digital interface for a FlexRIO-based system. Its 16 RX and TX pairs support RS-485, RS-422 and other electrically compatible interfaces, with a maximum data rate of 16 Mbit/s.

The module uses VHDCI and BNC front connections and includes one external clock input. Select the supporting FlexRIO FPGA hardware and confirm the exact adapter configuration against NI documentation before integration.

  • FlexRIO digital I/O adapter with 16 RX and TX pairs.
  • Differential signaling for RS-422/RS-485 interfaces.
  • Maximum data rate of 16 Mbit/s and maximum clock rate of 16 MHz.
  • VHDCI and BNC front connections with one external clock input.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels16
Maximum Clock Rate16 MHz
Logic Levels And RangeRS-422/RS-485, 0.1V - 3.0V, 0.0V - 3.3V
Compatible FPGAVirtex-5, Kintex-7
Maximum Data Rate16 Mbits/s
Signaling TypeDifferential
ReconfigurableYes
Maximum Digital Update Rate3.33 ns
Operating Temperature Range0 °C to 55 °C
Digital I/O Logic LevelsRS-422/RS-485
Front Connection TypeVHDCI, BNC
Number of External Clock Inputs1
Supports Peer To Peer StreamingYes
Supported Hardware PlatformComputer-Based Device
Output Voltage Range0.1 V to 3 V
Maximum Acquisition Rate16 MB/s
Maximum Generation Rate16 MB/s
Module Width1
EnclosedYes
NI part numbers781290-01, 781290-02, 781290-03
