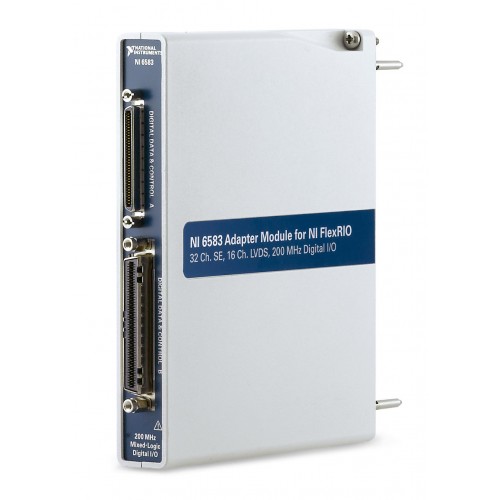

NI (National Instruments) NI-6583 200 MHz, 32 Single-Ended and 16 LVDS Channels, Digital I/O Adapter Module for FlexRIO

1 image: Click to enlarge

NI (National Instruments) · Computer-Based Device

NI-6583

The NI-6583 is a reconfigurable digital I/O adapter module for FlexRIO with 32 single-ended and 16 LVDS channels. It provides 48 bidirectional digital channels in total and a maximum clock rate of 200 MHz.

ManufacturerNI (National Instruments)

ModelNI-6583

Part Number781320-01 · 781320-02

Product Type200 MHz, 32 Single-Ended and 16 LVDS Channels, Digital I/O Adapter Module for FlexRIO

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-6583

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bidirectional Digital Channels48

Maximum Clock Rate200 MHz

Compatible FPGAVirtex-5, Kintex-7

Digital I/O Termination50 Ohm

Maximum Data Rate300 Mbits/s

Signaling TypeSingle-Ended, Differential

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-6583 provides the digital I/O interface for a FlexRIO system, combining single-ended and differential signaling in one adapter module. Its channel configuration comprises 32 single-ended channels and 16 LVDS channels.

The module has a maximum clock rate of 200 MHz, two external clock inputs, and InfiniBand and VHDCI front connections. System integration requires checking the exact FlexRIO FPGA module, connector pinout, signal requirements, and software support.

48 bidirectional digital channels with single-ended and differential signaling.
Maximum clock rate of 200 MHz and maximum data rate of 300 Mbits/s.
Output voltage range of 1.2 V to 3.3 V and specified digital I/O termination of 50 Ω.
Two external clock inputs with InfiniBand and VHDCI front connections.
Reconfigurable FlexRIO digital I/O architecture supporting Virtex-5 and Kintex-7 FPGA families.

Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels	48
Maximum Clock Rate	200 MHz
Compatible FPGA	Virtex-5, Kintex-7
Digital I/O Termination	50 Ohm
Maximum Data Rate	300 Mbits/s
Signaling Type	Single-Ended, Differential
Reconfigurable	Yes
Maximum Digital Update Rate	1 µs
Operating Temperature Range	0 °C to 55 °C
Front Connection Type	InfiniBand (IB), VHDCI
Number of External Clock Inputs	2
Supports Peer To Peer Streaming	Yes
Supported Hardware Platform	Computer-Based Device
Output Voltage Range	1.2 V to 3.3 V
Module Width	1
Enclosed	Yes
NI part numbers	781320-01, 781320-02

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

NI-6583

This product

Compatibility

Listed compatible FPGA families: Virtex-5 and Kintex-7. Exact FlexRIO FPGA module and software compatibility must be checked separately.

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

NI 6583R SpecificationsTechnical resource

Open →

NI-6583 Dimensional DrawingsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many digital channels does the NI-6583 provide?

It provides 48 bidirectional digital channels: 32 single-ended channels and 16 LVDS channels.

What are the maximum clock and data rates?

The specified maximum clock rate is 200 MHz and the maximum data rate is 300 Mbits/s. These are separate specifications; consult the NI specifications for signal-specific operating limits.

What front connections does the NI-6583 use?

The listed front connection types are InfiniBand (IB) and VHDCI. Check the NI specifications for pin assignments before selecting cables or connecting signals.

Which FPGA families are listed for the NI-6583?

The supplied verified data lists Virtex-5 and Kintex-7. Confirm support for your specific FlexRIO FPGA module and software configuration before integration.
