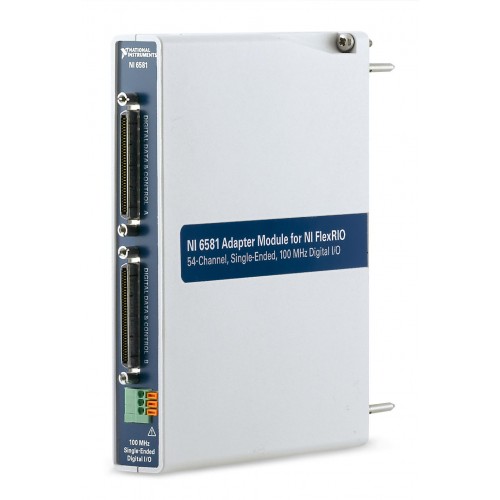

The NI-6581 is a 100 MHz, 54-line single-ended digital I/O adapter for NI FlexRIO FPGA-based digital instrumentation.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Used with an NI FlexRIO FPGA module, the NI-6581 supports programmable digital pattern generation and acquisition. NI demonstrates independent generation and acquisition timing with this adapter.
PFI lines can carry control signals or serve as additional data lines; NI confirms that they share the electrical characteristics of the main data lines.
Verified product specifications.
| Channel organization | 48 data plus 6 PFI; 27 lines per connector |
|---|---|
| Front-panel data connectors | Two 68-pin VHDCI |
| Data direction control | Per 8-bit port |
| Nominal digital output impedance | 50 Ω |
| Documented logic levels | 1.8, 2.5, 3.3; 5.0 requires external supply V |
| Maximum clock toggle rate | 100 at reference voltage ≥3.3 V MHz |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
FPGA instrumentation platform
Digital I/O adapter
Supported FPGA module families: NI PXI-795xR and NI PXIe-796xR.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI specifies PXI-795xR and PXIe-796xR FPGA modules only.
Yes. NI confirms that the NI-6581 PFI lines can be used for data as well as control signals.
NI lists SHC68-C68-D4 and C68-C68-D4 cables for the NI-6581.
